Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | QT | Model: | 9 Inches |
|---|---|---|---|
| Gear Ratio: | 61:1 | PrecisIon: | ≤0.1° |
| Driver: | AC/DC Motor | Color: | As Requested |
| Holding Torque: | 30800 Nm | Package: | Plywood Case |
| Highlight: | VE 9 Single Axis Slew Drive Gearbox,PV Panel Tracking Slew Drive Gearbox,DC Motor Slew Drive Gearbox |
||

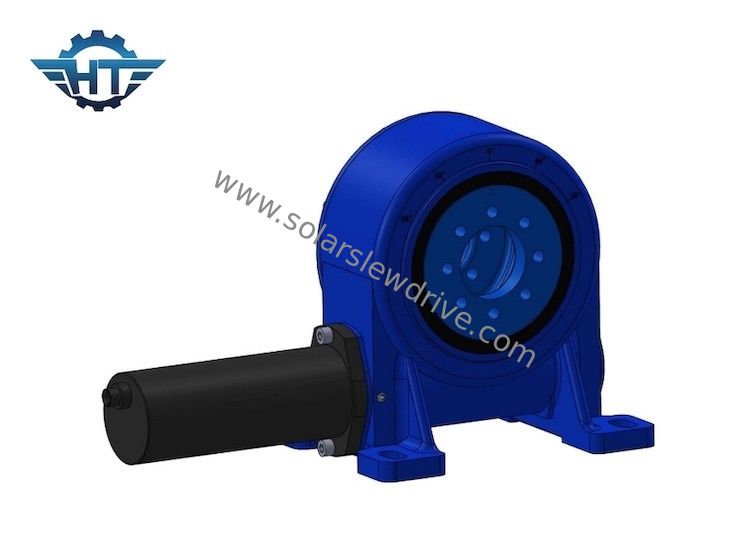

VE9 Single Axis Slew Drive Gearbox For Horizontal Single Axis PV Panel Tracking System
Single Axis Slew Drive Gearbox Description
VE slewing drives also called vertical single axis slewing drive is a fully-enclosed, vertical drive that does not require other components for mounting. It can be easily installed on the plate by just four bolts. It is most commonly used in the center of single-axis solar trackers to hold the solar array sturdy in a high wind storm without breaking. It can be also installed at both side of the single axis solar tracking system. Our slewing drive uses hourglass worm technology will offer the greatest level of strength and power thereby increasing field life and decreasing downtime.
VE Series Technical Sheet
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Features
1. Large transmission force and compact structure.
2. The multi-tooth surface meshing greatly improves the bearing capacity. And the transmission is smooth and the noise is very low.
3. Self-locking, when the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking and can realize reverse self-locking. Its reverse self-locking can play a role in safety protection.
4. The axial force of the worm is large
Application
We provides reliable mechanical slewing drives for horizonal single axis, dual-axis PV tracking system, CSP, CPV solar tracking design.Our professional and high-quality products will be also applied as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle, automated assembly lines, wind yaw systems,etc.
