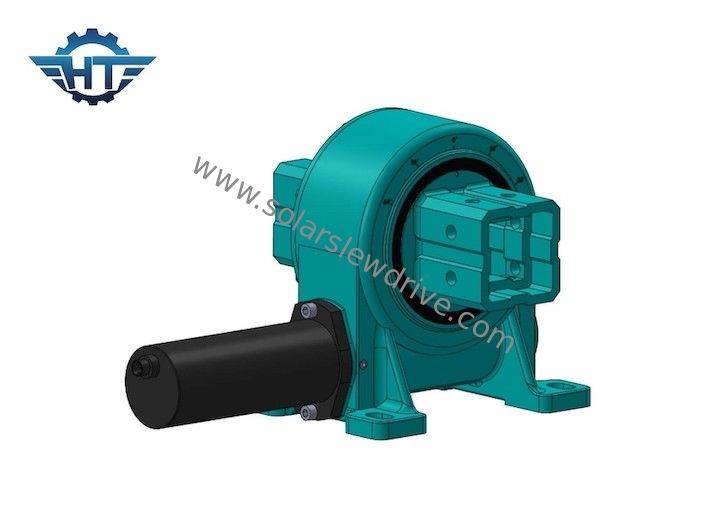

Vertical Single Axis Worm Gear Slew Drive For Outdoor Long Life Solar Tracking System
Worm Gear Slew Drive Description
The enclosed slewing drive is widely used in the case of relatively high working conditions which need dustproof, rainproof, anti-corrosion and other occasions with high requirements for the slewing structure. The IP grade reaches IP66.
Data Sheet of VE Model Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Feathures
Self-locking gearset.
Available with 24V/12V directly mounted planetary geared motors.
Higher wear-resistance of worm gear drive, which can load strong output torque and tilting moment torque with the well performance of stability and reliability.
Available for higher tracking precise field.
Applications
The worm gear slewing drive can be applied in solar energy such us PV tracking system, CSP, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, diggers, automotive lifts and wind turbines, dishes, satellite antenna etc.
