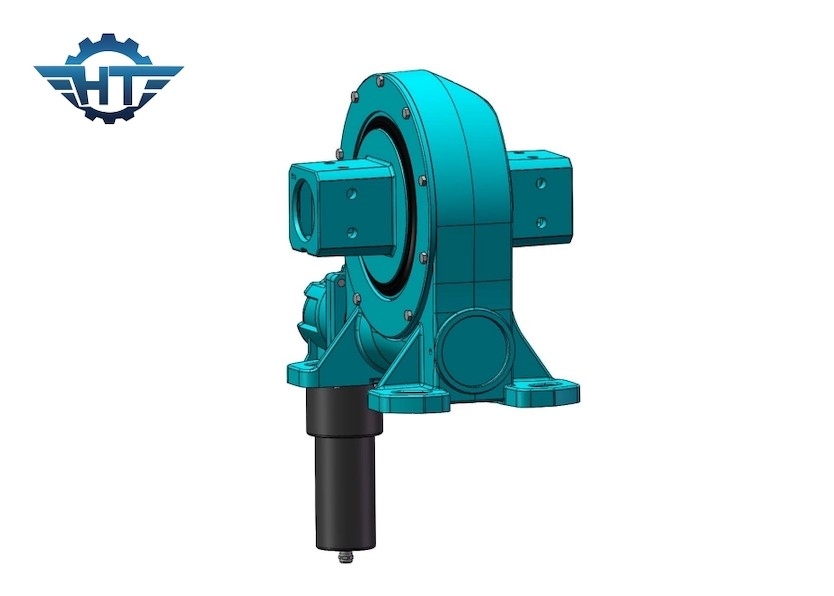

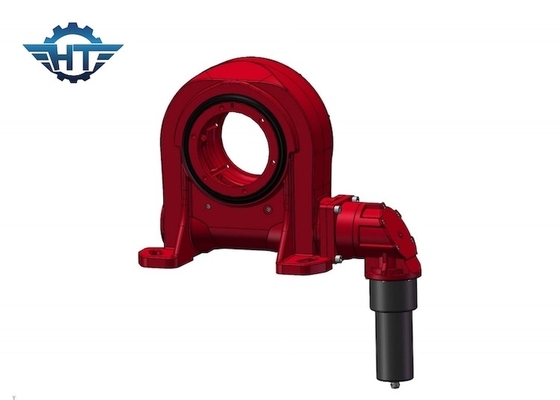

VE9 Vertical Worm Gear Solar Slew Drive With Enclosed Housing For Tracking System

VE9 Vertical Worm Gear Solar Slew Drive With Enclosed Housing For Tracking System

  • VE9 Vertical Worm Gear Solar Slew Drive With Enclosed Housing For Tracking System
  • VE9 Vertical Worm Gear Solar Slew Drive With Enclosed Housing For Tracking System
VE9 Vertical Worm Gear Solar Slew Drive With Enclosed Housing For Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: VE9 Slewing Drive Material: QT
Warranty: 5~10 Years Size: 3 Inches To 25 Inches
Type Of Tooth: Helical Tooth Motor: AC Motor, DC Motor And Hydraulic Motor
Color: Customer Required Application: Solar Tracking System
High Light:

VE9 Gear Solar Slew Drive

,

Solar Slew Drive With Enclosed Housing

,

Vertical Worm Solar Slew Drive

VE9 Vertical Worm Gear Slew Drive With Enclosed Housing For Solar Tracking System​



Worm Gear Slew Drive Description



Slewing drives are an update to the worm drive mechanism for applications where rotational torque and load need to be maintained in the same gearbox. Hangtuo is a manufacturer specializing in the production and sale of slewing drives, providing customizable, high-quality and competitively priced slewing drives. We will work with you from design to implementation to ensure complete satisfaction.



VE Model Slewing Drive Technical Data



 VE Model Performance Parameters

Model

Rated Output Torque (N.m)

Holding Torque (N.m)

Tilting Torque (N.m)

Axial Load (kN)

Radial Load (kN)

Ratio

Precision (degree)

Precision

IP

Working Tep(℃)

Self-locking

Weight (kg)

3"

600

1800

1500

22

15

31:1

40%

≤0.10

66

-40~+120

Yes

12kg

5"

800

9200

5000

16

27

37:1

40%

≤0.10

66

-40~+120

Yes

18kg

7"

1750

13200

7000

34

58

57:1

40%

≤0.10

66

-40~+120

Yes

32kg

8"

2250

20400

11200

50

80

51:1

40%

≤0.10

66

-40~+120

Yes

28kg

9"

4300

30800

16000

60

130

61:1

40%

≤0.10

66

-40~+120

Yes

52kg

12"

5600

40560

25000

77

190

78:1

40%

≤0.10

66

-40~+120

Yes

65kg

14"

6750

44200

48000

110

230

85:1

40%

≤0.10

66

-40~+120

Yes

88 kg

17"

9460

53040

67000

142

390

102:1

40%

≤0.10

66

-40~+120

Yes

135 kg

21"

16000

65000

89000

337

640

125:1

40%

≤0.10

66

-40~+120

Yes

192 kg

25"

21450

89000

112000

476

950

150:1

40%

≤0.10

66

-40~+120

Yes

251 kg



Advantages



1. Modularity

Due to the high degree of integration of the rotary drive, the user does not have to purchase and process each piece of the components that make up the rotating device, and to a certain extent reduce the preparation process at the beginning of the product production, thereby greatly improving the labor productivity.

2. security

Worm gear drive with reverse self-locking characteristics, can achieve reverse self-locking, that can only be driven by the worm, and can not be driven by the worm gear. This feature allows the rotary drive can be widely used in lifting, aerial work and other equipment, while improving the host of scientific and technological content, but also greatly enhance the stability of the host operating and operating safety factor. Slew drive with the traditional rotary products, compared with the installation is simple, easy to maintain, to a greater extent, save space for installation.

3. Simplify the host design

Compared with the traditional gear drive, the worm gear drive can be relatively large reduction ratio, in some cases, the host can save the reducer parts, so as to reduce procurement costs for customers, but also greatly reduces the host failure rate.



Applications



Photovoltaic power generation field

Photovoltaic power generation is an important and widely used field of rotary drive. The solar photovoltaic module with rotary drive as the rotating component can accurately adjust the rotation angle and elevation angle of the host according to the different positions of the sun during the day, so that the solar panel is always in the best receiving angle.
