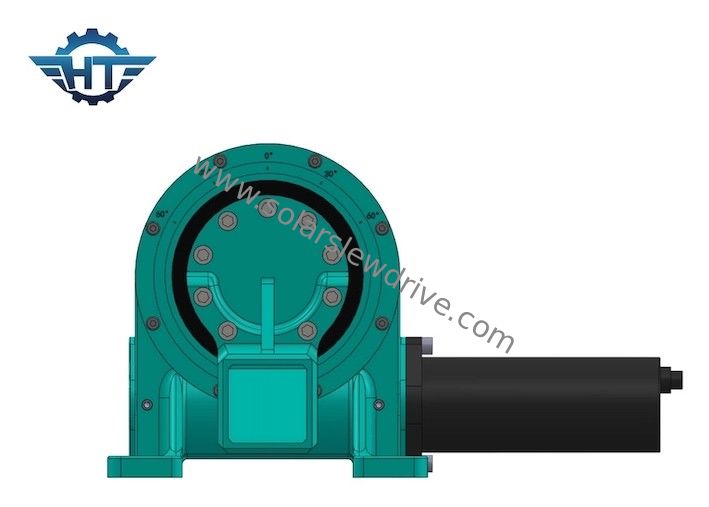

IP66 Heavy Duty Solar Slew Drive Gearbox For Electric Motor Single Axis Tracking System

IP66 Heavy Duty Solar Slew Drive Gearbox For Electric Motor Single Axis Tracking System

  • IP66 Heavy Duty Solar Slew Drive Gearbox For Electric Motor Single Axis Tracking System
  • IP66 Heavy Duty Solar Slew Drive Gearbox For Electric Motor Single Axis Tracking System
IP66 Heavy Duty Solar Slew Drive Gearbox For Electric Motor Single Axis Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE9"
Efficiency: 40% Gear Ratio: 61:1
Rated Output Torque: 4300 Nm Holding Torque: 27200 Nm
Tilting Torque: 16000 Nm Precise: Less Than 0.1 Degree
High Light:

Heavy Duty Solar Slew Drive Gearbox

,

Electric Motor IP66 Solar Slew Drive

,

4300 Nm Solar Slew Drive

IP66 Heavy Duty Slew Drive Gearbox For Electric Motor Single Axis Solar Tracking System​



Heavy Duty Slew Drive Gearbox Description



Rotary drive device is also known as rotary reducer, gear reducer, turntable reducer, and slewing mechanism. They are all types of reducers that use slewing bearing as the main support, and use gears or worms as the auxiliary drive source to realize the functions of deceleration and full-circle rotation. The composition of slewing drive mainly includes gear (or worm), slewing bearing, motor, casing and base. The slewing drive can be basically divided into single worm drive slewing drive, double worm drive slewing drive and special type slewing drive.



Technical Data



Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 37:1 Efficiency 40%



VE Slew Drive Technical Data



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg





Advantages



1. Rotation ±60°, hard stop/hard limit inside the drive incase of software controlling failure

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping
