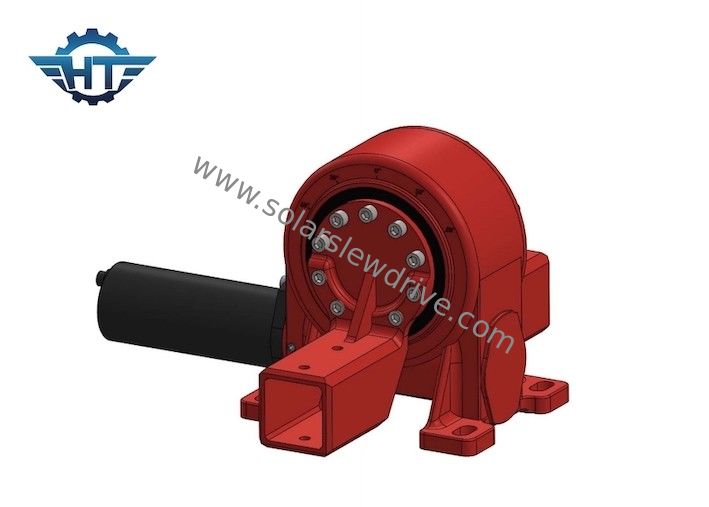

Large Slewing Ratio Worm Gear Bearing For Auto Solar Tracking System

Large Slewing Ratio Worm Gear Bearing For Auto Solar Tracking System

  • Large Slewing Ratio Worm Gear Bearing For Auto Solar Tracking System
  • Large Slewing Ratio Worm Gear Bearing For Auto Solar Tracking System
Large Slewing Ratio Worm Gear Bearing For Auto Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: VE9" Gear Ratio: 61:1
Application: Solar Tracking System Place Of Origin: Changzhou, China
Driver: Planetary Gearbox Certificate: ISO9001, CE
Color: As Requested Backlash: ≤0.1°
High Light:

large Slewing Ratio Worm Gear Bearing

,

Planetary Gearbox Solar Slew Drive

,

60 KN Solar Slew Drive

Large Slewing Ratio Worm Gear Slewing Bearing For Auto Solar Tracking System





Worm Gear Slewing Bearing Description



Our slewing drives can be used in almost any application that requires full-circle or limited-angle motion. Slewing drives are designed to handle radial or axial loads with high rotational torque. Mining, construction, metalworking and other applications that require unrelenting strength and flawless precision use rotary technology for safety and accuracy.

The options for our swing drives are as follows:


Single Worm Drive
Double Worm Drive
Hydraulic Motor
Electric Motor
Air Motor
Encoder
Tracking Accuracy
Open House
Closed House



Parameters



Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27.2 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%



VE Series Slew Drive Technical Data



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
