| Model: | 9 Inches | Gear Ratio: | 61:1 |
|---|---|---|---|
| Material: | QT | Precision: | ＜0.1° |
| Driver: | Electric Motor | Type: | Single Axis |
| Application: | Solar Plant | Color: | As Requested |
| High Light: | VE 9 Worm Gear Slew Drive,9 Inches Solar Slew Drive,Electric Motor Horizontal Solar Slew Drive |
||

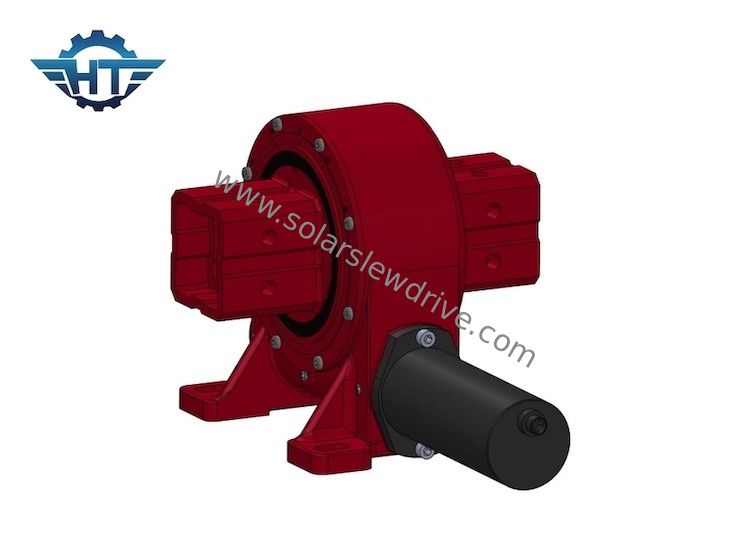

VE9 Single Worm Gear Slew Drive With High Torque For Linkage Solar Tracking System
Description
Slewing drives or slewing ring bearings are rotating modules which are compact rotational units integrated in a cast iron housing that contains a turning ring with a gear. The gear rotates the turning ring with great precision and allows for smooth rotation and maximum effort.
Features
1. Reverse self-locking because of worm gear self-locking characteristics. This feature greatly enhances the stability of the host operating and safety factor.
2. Compared to the traditional swing products, slewing drive gearbox is easy to install, easy to maintain, and saves considerable installation space.
Parameters of VE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. Strong overturning moment based on slewing ring
2. Enveloping worm drive inside
3. Large load for using multi tooth contact
4. Static self-locking function
5. Hard stop inside
Applications
Typical slewing drive or slewing ring applications include solar power, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s and automotive lifts.
