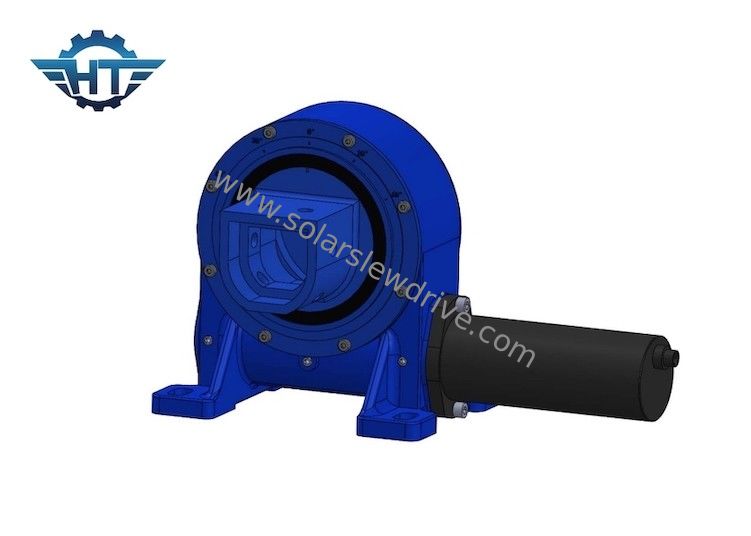

Hourglass Enveloping Worm Gear Slewing Drive For Self Locking Solar Tracking System

Hourglass Enveloping Worm Gear Slewing Drive For Self Locking Solar Tracking System

  • Hourglass Enveloping Worm Gear Slewing Drive For Self Locking Solar Tracking System
  • Hourglass Enveloping Worm Gear Slewing Drive For Self Locking Solar Tracking System
Hourglass Enveloping Worm Gear Slewing Drive For Self Locking Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9”
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 9 Inch Application: Solar Tracking System
Color: As Requested Gear Ratio: 61:1
Efficiency: 40% Precise: ≤ 0.1
Driver: Electric Motor Type: Vertical Mounted
High Light:

Hourglass Enveloping Worm Gear Slewing Drive

,

Self Locking Solar Gear Slewing Drive

,

vertical mounted Solar Slewing Drive

Hourglass Enveloping Worm Gear Slewing Drive For Self Locking Solar Tracking System



Enveloping Worm Gear Slewing Drive Description



Tracking accuracy
Our slewing drives are used in applications that require high precision and absolute reliability. The minimum accuracy for our swing drives is 0.05 degrees.
Full circle rotation range
360 degree infinite rotation without any limitations.
Standard model
From the small size of 1" all the way up to the large size (21").ansmission, the worm gear transmission can obtain a relatively larger reduction ratio. In some cases, the reducer parts can be omitted for the main engine, thereby reducing the purchase cost for customers, and also greatly reducing the occurrence of main engine failure.



Parameters of VE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Advantages



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function
