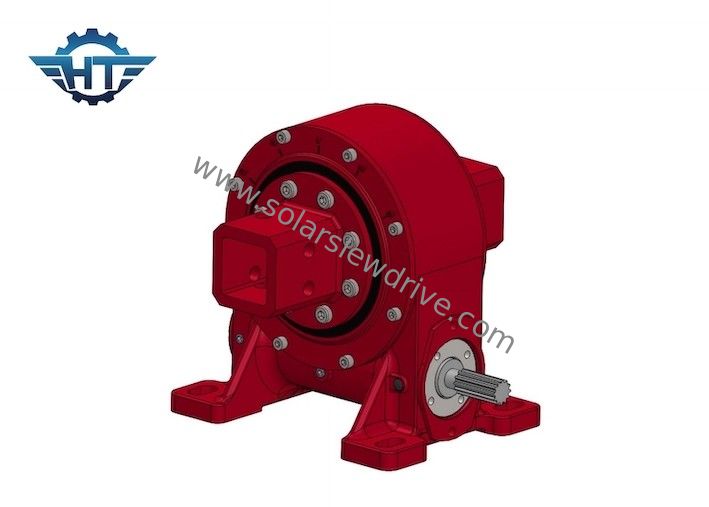

Vertical Single Axis Solar Slew Drive Gearbox 7320 Nm For Flat Auto PV Trackers

Vertical Single Axis Solar Slew Drive Gearbox 7320 Nm For Flat Auto PV Trackers

  • Vertical Single Axis Solar Slew Drive Gearbox 7320 Nm For Flat Auto PV Trackers
  • Vertical Single Axis Solar Slew Drive Gearbox 7320 Nm For Flat Auto PV Trackers
Vertical Single Axis Solar Slew Drive Gearbox 7320 Nm For Flat Auto PV Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 200~300/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE7"
Efficiency: 40% Standard Color: As Requested
Gear Ratio: 57:1 Rated Output Torque: 7320 Nm
Holding Torque: 3.9 KNm Tilting Torque: 8 KNm
High Light:

Vertical Single Axis Solar Slew Drive

,

Solar Slew Drive Gearbox 7320 Nm

,

Auto PV Trackers Solar Slew Drive

Vertical Single Axis Solar Slewing Drive Gearbox For Flat Auto PV Trackers



Vertical Single Axis Slewing Drive Description



Slewing drives use worm gear technology, where a worm on a horizontal shaft acts as a drive for gears. The rotation of the horizontal screw rotates the gear about an axis perpendicular to the axis of the screw. This combination reduces the speed of the driven component and also increases its torque. As the speed decreases, it increases by the reduction ratio. The reduction ratio depends on the relationship between the number of threads on the worm and the number of teeth in the worm wheel or gear.
As technology advances, more rotary drives are using spherical enveloping worm technology, where the worm is shaped to mesh with more teeth in the gear. This increased tooth engagement allows for greater strength, efficiency and durability of the slewing drive.


Technical Date of Vertical Series



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Services


1. OEM service

2. We provide standard products and non-standard products;

3. We provide customized samples, customized drawings, door-to-door mapping and other services;

4. We provide a full range of services, including design, processing, packaging, transportation, etc.


Packaging & Shipping



1. Filling with rust-proof oil

2. Packing with protective layers

3. Fixed in the plywood case, pallet, steel frame
