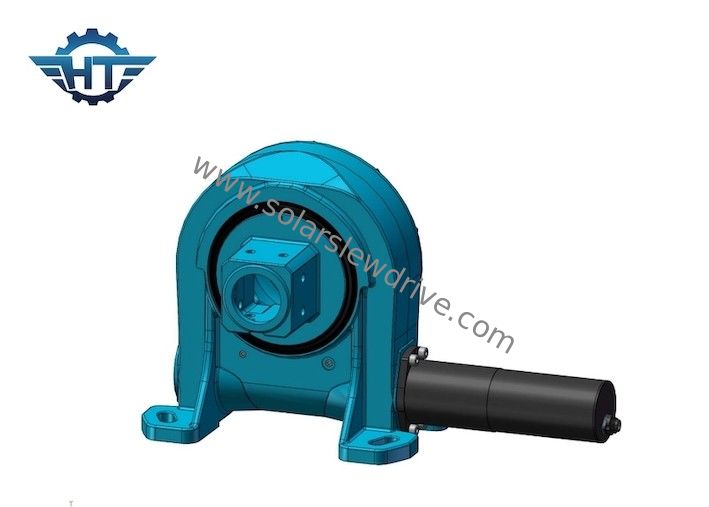

9 Inch Vertical Worm Gear Slewing Drive For High Holding Torque Solar Tracking System

9 Inch Vertical Worm Gear Slewing Drive For High Holding Torque Solar Tracking System

  • 9 Inch Vertical Worm Gear Slewing Drive For High Holding Torque Solar Tracking System
  • 9 Inch Vertical Worm Gear Slewing Drive For High Holding Torque Solar Tracking System
9 Inch Vertical Worm Gear Slewing Drive For High Holding Torque Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 9 Inches Gear Ratio: 61:1
Efficiency: 40% Precision: Less Than 0.1 Degree
Driver: Electric DC Motor Type: Vertical Mounted
Application: Solar Tracking System Color: As Requested
High Light:

Vertical Worm Gear Slewing Drive

,

9 Inch Slew Gear Slewing Drive

,

High Holding Torque Gear Slewing Drive

9 Inch Vertical Worm Gear Slewing Drive For High Holding Torque Solar Tracking System



Worm Gear Slewing Drive Description



Since the slewing drive reducer is usually used as a general component of large-scale equipment, the slewing drive reducer product is in a component assembly state when it is delivered to the user, and needs to be connected and assembled with the host when it arrives at the manufacturer of the complete machine. In this process, especially for the slewing drive with a closed structure, because the connection between the outer casing and the internal transmission part and the connection between the entire slewing drive and the host use the same set of connecting holes, the slewing drive is pre-connected between the outer casing and the internal transmission part when it leaves the factory. This connection involves the transmission clearance and position adjustment of the internal transmission parts of the slewing drive, so when connecting with the host, it is necessary to retain these pre-connections in the same group of flange holes, and use other holes reserved for users by the rotary drive manufacturer. It must be installed together with the host. During this process, the original assembly form of the slewing drive must not be damaged, so as not to damage its transmission efficiency. The slewing drive delivered to the user has been filled with lubricating oil before leaving the factory. When the main engine is delivered to the user, the user should be informed to regularly add lubricating oil and maintain it according to the rules of use of the slewing drive.



Parameters of VE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Advantages



1. Rotate of ±60°, hard stop inside

1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function



Application



Applications include solar trackers, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, automotive lifts and wind turbines, dishes, satellite antenna etc.
