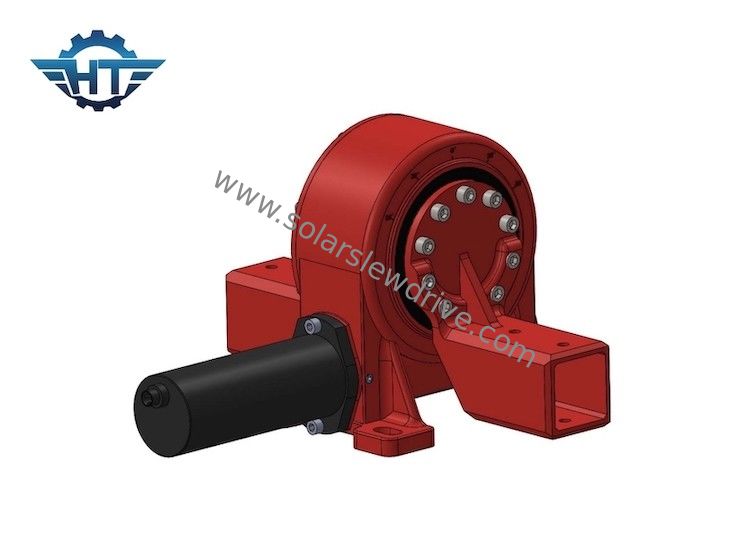

VE8 Single Axis Solar Tracker Slew Drive Vertical 533 Nm For Sun Tracking System

VE8 Single Axis Solar Tracker Slew Drive Vertical 533 Nm For Sun Tracking System

  • VE8 Single Axis Solar Tracker Slew Drive Vertical 533 Nm For Sun Tracking System
  • VE8 Single Axis Solar Tracker Slew Drive Vertical 533 Nm For Sun Tracking System
VE8 Single Axis Solar Tracker Slew Drive Vertical 533 Nm For Sun Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Power Supply: 24 V Type: Vertical Single Axis
Place Of Origin: Changzhou, China Output Torque: 533 Nm
Output Speed: 0.065 RPM Feature: Double Envelop
Usage: Tiny Solar Tracker Protect Feature: IP66
High Light:

VE8 Vertical Solar Tracker Slew Drive

,

533 Nm Solar Tracker Slew Drive

,

Sun Tracking System Solar Slew Drive

VE8 Single Axis Solar Tracker Slew Drive, Vertical Slew Drive For Sun Tracking System



VE8 Single Axis Slewing Drive Description



The enveloping worm rotary slewing drive is the main product of the Hangtuo brand. This product is mainly used in low-speed heavy-duty and complex load situations, such as the synchronous tracking of large solar panels and the direction adjustment of wind turbine blades. To load and overturning moment, well-manufactured, installation specifications, the envelope worm return reducer used within the design range, its life can be as long as thirty years.



Performance Data of VE Series Slewing Drive



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Application



Slewing drive is a perfect product for the application which requires rotational torque strength.

Slew Drive For Solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis & dual axis solar tracking solutions are available.

For wind generators: Slewing drives are used to rotate the pedestal in wind turbines
For Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, dock crane, timber grab
For Industry Market: Automation/assembly line, robotic arm
For Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
