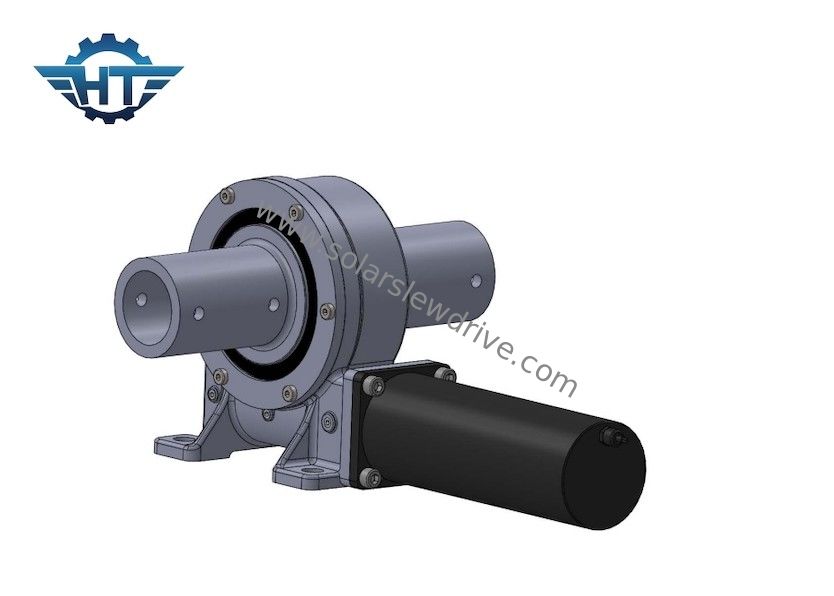

VE7 Hourglass Worm Gear Slew Drive For Horizontal Single Axis PV Panel Tracking System

VE7 Hourglass Worm Gear Slew Drive For Horizontal Single Axis PV Panel Tracking System

  • VE7 Hourglass Worm Gear Slew Drive For Horizontal Single Axis PV Panel Tracking System
  • VE7 Hourglass Worm Gear Slew Drive For Horizontal Single Axis PV Panel Tracking System
VE7 Hourglass Worm Gear Slew Drive For Horizontal Single Axis PV Panel Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE7 Inch
Gear Ratio: 57:1 Precision: ≤ 0.1 Degree
Driver: DC Motor Color: As Requested
Holding Torque: 30800 Nm Package: Plywood Case
High Light:

Horizontal Hourglass Worm Gear Slew Drive

,

VE7 inch Gear Slew Drive

,

PV Panel Tracking System Slew Drive

VE7 Hourglass Worm Gear Slew Drive For Horizontal Single Axis PV Panel Tracking System



Worm Gear Slew Drive Description



The drive can be divided into two types: gear drive and worm gear drive according to different transmission forms, and can be divided into two types: open type and closed type according to the different closed forms of transmission. The simplest form of rotary drive is used in excavators, tower cranes and other construction machinery. The drive turntable on the product is the last link of the reduction transmission chain. This rotary drive is an open gear transmission, and its front end needs to be equipped with a planetary reducer with a large reduction ratio as its power input, so it can only be called a rotary drive. The prototype of the drive, in order to expand the application range of such products and further improve the convenience of product use and maintenance, a rotary drive with integrated worm gear and worm drive has been developed. Applied to such products, the rotary drive equipped with the enveloping worm not only increases the driving torque, but also further improves the driving accuracy, and can be digitally controlled, so it is widely used in tracking and fine-tuning devices on solar and wind power generation equipment. It has good application results in the fields of robots, radar, low-speed heavy-duty lifting, lifting equipment, precision CNC turntables and other products.



VE Series Slewing Drive Technical Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Application



We are committed to researching, developing and applying high quality slewing drives. We provides reliable mechanical slewing drives for horizonal single axis, dual-axis PV tracking system, CSP, CPV solar tracking design.Our professional and high-quality products will be also applied as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle, automated assembly lines, wind yaw systems,etc.
