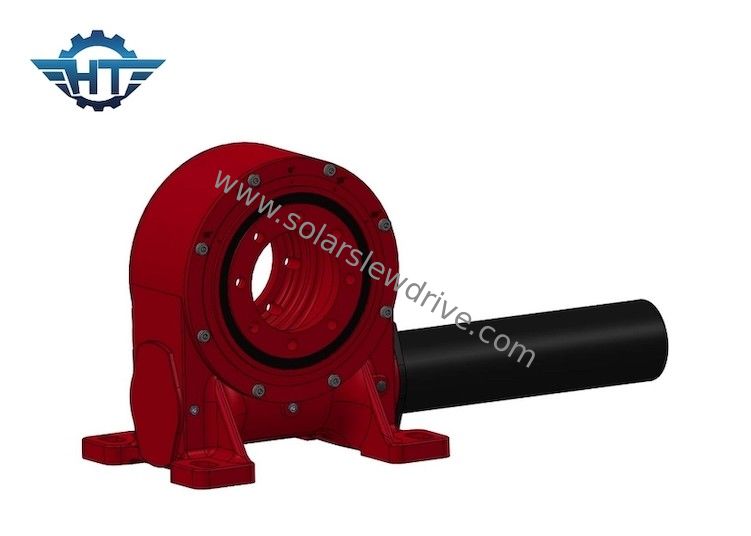

VE7 Single Axis Solar Slew Drive Gearbox Easy Maintenance For Horizontal Trackers

VE7 Single Axis Solar Slew Drive Gearbox Easy Maintenance For Horizontal Trackers

  • VE7 Single Axis Solar Slew Drive Gearbox Easy Maintenance For Horizontal Trackers
  • VE7 Single Axis Solar Slew Drive Gearbox Easy Maintenance For Horizontal Trackers
VE7 Single Axis Solar Slew Drive Gearbox Easy Maintenance For Horizontal Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 360/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand Name: HT Material: QT
Self-lock: Yes Color: As Requested
Model: Vertical Type Certificate: ISO9001, CE
Motor: 12/24VDC Maintenance: Free
High Light:

VE7 Single Axis Solar Slew Drive

,

24VDC Solar Trackers Slew Drive

,

Horizontal Solar Trackers Slew Drive

VE7 Single Axis Solar Slew Drive Gearbox, Easy Maintenance For Horizontal Solar Trackers



Single Axis Solar Slew Drive Description



Slewing drive is a special slewing deceleration product derived from slewing bearing products with high integration and large reduction ratio, simple structure, convenient use and easy maintenance. The inner and outer rings respectively realize the input and output of driving power, so that the slewing drive can not only realize 360-degree full-circle rotation without a stop, but also install the driving power source on the basis of the slewing bearing frame, so its transmission efficiency is high, and it is a mechanical transmission. And because it is essentially a reduction gear, it can also be called a rotary reducer, a turntable reducer or a drive turntable.



VE Type Slewing Drive Data Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Application



The enveloping worm rotary drive of Hangtuo Machinery is completely derived from its own technology, with unique processing technology and full numerical control of the processing process, so the product quality is highly controllable, the manufacturing accuracy is far higher than the level of similar products, and the performance of the finished product Also far higher than other similar products. In addition to the stereotyped products, the enveloping worm and the matching worm gear can be flexibly optimized and configured according to user needs. According to different use requirements and environments, Hangtuo enveloping worms can be made of various materials and can be subjected to various specific heat treatments to make the products more in line with user needs in terms of durability. Such slewing drive products are the best choice for occasions that require long-term maintenance-free operation in outdoor environments such as solar and wind energy applications.
