Durable Envelop Worm Small Slew Drive For Slow Speed Moving Anti Rust

Name: Durable Envelop Worm Small Slew Drive For Slow Speed Moving Anti Rust
Brand: HangTuo
SKU: SE9"
Price: 100 USD
Availability: InStock
Rating: 5 (124 reviews)

Product Details:

Place of Origin:	China
Brand Name:	HangTuo
Certification:	CE, ISO9001
Model Number:	SE9"

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD 100~1100/ pc
Packaging Details:	plywood box
Delivery Time:	15~45 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Gear Ratio:	31:1~150:1	Holding Torque:	1800~89000 Nm
Tilting Torque:	1000~112760 Nm	Rated Output Torque:	0.02~0.04 RPM
Feature:	Anti-rust	Usage:	Slow Speed Moving Solar Tracking System
Place Of Origin:	Changzhou, China	Self-lock:	Yes
High Light:	Durable Envelope Worm Small Slew Drive , 89000 Nm Worm Slew Drive , Anti Rust Worm Slew Drive

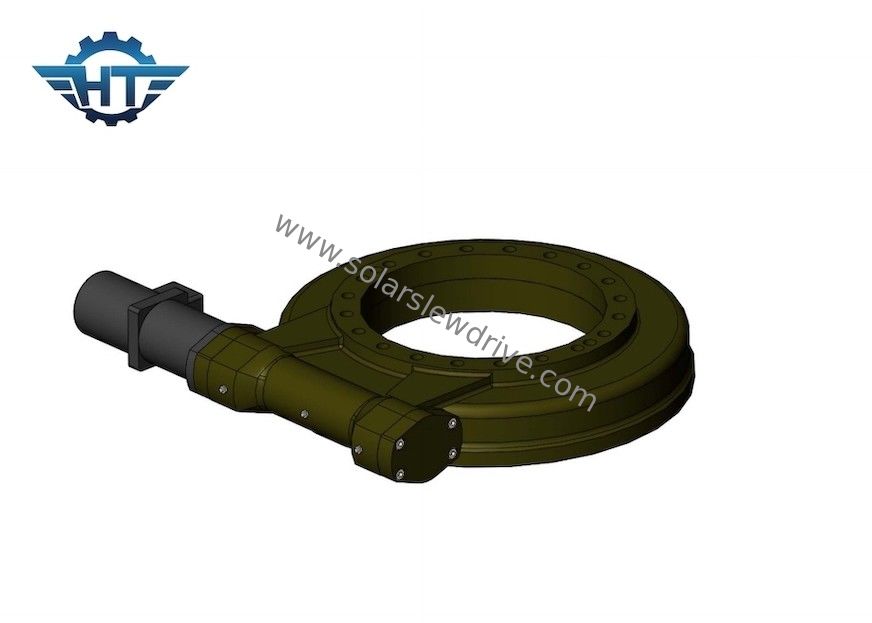

Durable Envelop Worm Small Slew Drive For Slow Speed Moving Solar Tracking System

Worm Small Slew Drive Description

At present, there are two main forms of solar energy development and utilization in the world: solar thermal power generation and photovoltaic power generation.
Photovoltaic tracking power generation is to build a large-scale photovoltaic power station. Photovoltaic panel components are a kind of power generation device. When sunlight shines on the photovoltaic panel components, direct current will be generated. The current solar photovoltaic tracking system forms mainly include: inclined single-axis tracking system, dual-axis tracking system, linkage type flat single-axis tracking system, and column type single-axis tracking system.

Photothermal tracking power generation is to use a flat mirror to condense sunlight in a certain place, use the collected heat to generate steam, and then drive a steam turbine to drive a generator to generate electricity. The current forms of solar thermal tracking systems mainly include: solar thermal tower power generation, solar thermal trough power generation solar thermal, dish power generation, and solar thermal Frenier power generation.

SE Series Slewing Drive Parameters

Model	Ratio	Rated Output Torque (N.m)	Tilting Torque (N.m)	Holding Torque (N.m)	Axial Load (kN)	Radial Load (kN)	Efficiency	Precision (°)	Self-locking	Weight (kg)
1”	32:1	400	1000	1800	22	12	40%	≤0.1	Yes	6
3”	31:1	600	1500	3000	30	16	40%	≤0.1	Yes	8
5”	37:1	800	6000	9200	68	27	40%	≤0.1	Yes	12
7”	57:1	2000	13500	13200	132	58	40%	≤0.1	Yes	21
9”	61:1	4400	45000	30800	340	130	40%	≤0.1	Yes	49
12”	78:1	5800	54400	40560	480	190	40%	≤0.1	Yes	61
14”	85:1	6550	68000	54200	680	230	40%	≤0.1	Yes	63
17”	102:1	9400	135600	65040	980	390	40%	≤0.1	Yes	105
21”	125:1	16000	203400	81000	1600	640	40%	≤0.1	Yes	149
25”	150:1	21000	271160	89000	2400	950	40%	≤0.1	Yes	204

Features

Slew drive is a new kind of slew products, with its compact design, easy to mount and save more space. Slew drive consists of worm, slew ring, end cup, motor and so on. The core part is slewing bearing, so slew drive can also bear axial, radial loading and titling moment at the same time.
