Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE12" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Gear Ratio: | 78:1 | Efficiency: | 40% |
|---|---|---|---|
| Application: | PV Auto Tracking System | Self-lock: | Yes |
| OEM Service: | Available | Driver: | Planetary Motor |
| IP Grade: | IP66 | Color: | As Requested |
| Highlight: | Gear Slew Drive With Electric Motor,Planetary Motor Gear Slew Drive,PV Auto Tracking Gear Slew Drive |
||

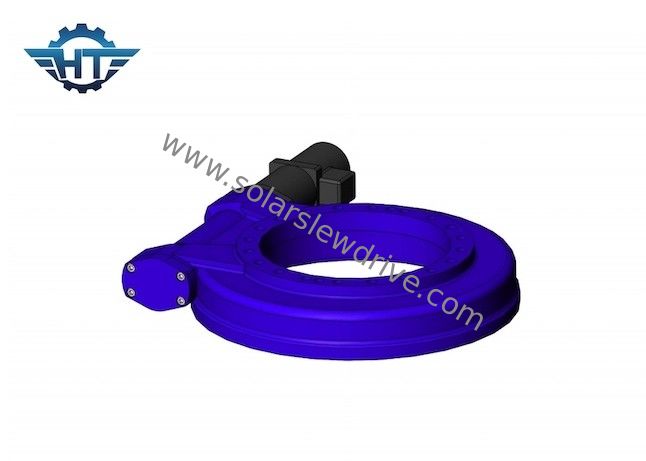

High Precision Worm Gear Slew Drive With Electric Motor For PV Auto Tracking System
Worm Gear Slew Drive Description
The slewing drive device is evolved from the slewing bearing. Therefore, in addition to the characteristics of the slewing bearing, the slewing drive has some advantages that the slewing bearing does not have, such as integrated design, convenient installation, high protection level, and self-locking. Therefore, the rotary drive device has a wide range of applications in the machinery industry, lifting industry, medical industry, solar tracking system, satellite tracking system, wind energy and many other industries.
Performance Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Advanced Research And Development
1. independent and complete development mechanism
2. 3D modeling software to conduct scientific analysis of load and production
3. Standard product design process:
3.1 customer technical inquirements
3.2 APQP&PPAP&FEMA analysis
3.3 3D model
3.4 simulation for slewing drive
3.5 production drawing and operation instructions
