Slow Speed Small Solar Tracker Slewing Drive 4400 Nm For Photovoltaic Automatic

Slow Speed Small Solar Tracker Slewing Drive 4400 Nm For Photovoltaic Automatic

  • Slow Speed Small Solar Tracker Slewing Drive 4400 Nm For Photovoltaic Automatic
  • Slow Speed Small Solar Tracker Slewing Drive 4400 Nm For Photovoltaic Automatic
Slow Speed Small Solar Tracker Slewing Drive 4400 Nm For Photovoltaic Automatic
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 61:1 Usage: Photovoltaic Automatic Tracking System
Place Of Origin: Changzhou, China Normal Output Torque: 4400 Nm
Holding Torque: 30800 Nm Tilting Torque: 45000 Nm
Self-lock: Yes Protect Feature: IP66
High Light:

Slow Speed Solar Tracker Slewing Drive

,

4400 Nm Solar Slewing Drive

,

Photovoltaic Automatic

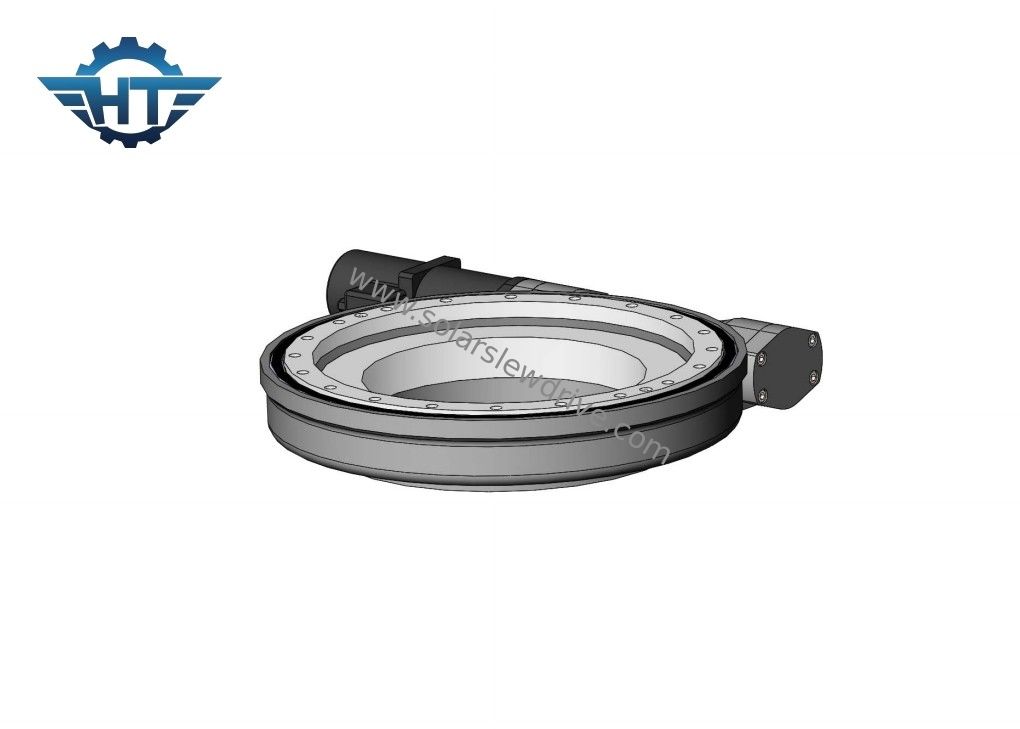

Slow Speed Small Solar Tracker Slewing Drive For Photovoltaic Automatic Tracking System​



Small Solar Tracker Slewing Drive Description



As a clean and non-polluting energy, solar energy has a very broad development prospect and has become a green energy developed by all countries. But solar energy suffers from low density, intermittent nature, and constant changes in light direction and intensity over time. The traditional fixed photovoltaic system is to fix the solar panel on the bracket, so that the photovoltaic panel array faces the sun at a certain angle, which will not change with the position of the sun, which affects the photoelectric conversion efficiency. If there is a 25-degree deviation between the photovoltaic system and the sun's rays, the output power of the photovoltaic array will drop by about 10% due to the reduction of vertically incident radiant energy. From day to night, the rise and fall of the sun and the angle of the sun's rays change all the time. Therefore, if the system can change the angle of the panel array with the angle of the light, the photovoltaic conversion rate can be improved. This can be achieved with a single-axis tracking system and a dual-axis tracking system using a slewing drive.



Parameters of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



DC Motor



1. Adopt Dual supporting structure for output shaft so that the max torque of gearbox is increased a lot.

2. Sun wheel and planetary wheel are connected by spline which increase the max torque of gearbox and lengthen the life.

3. We use helical gear at input stage which make the noise low anf run smoothly in high speed. The inner gear ring is separated so that we can make more ratio and the design is flexible. Gearbox and motor are located by a seam fix by screw in axial which increase the matching precision and reduce noise.

4. We use rolling pin holder inside planetary wheel.we use rolling pin grinding instead of sliding grinding so the life of gearbox is much longer.

5. Double supporting structure; Internal grinding on inner bore of planetary gears making the inner bore roundness less than 0.003mm;running by rolling instead of sliding; HRC60 gear surface precision scraping;The adopting of all these technoligies ensure the super quiet and steady operating and a long life time over 10000 hours.
