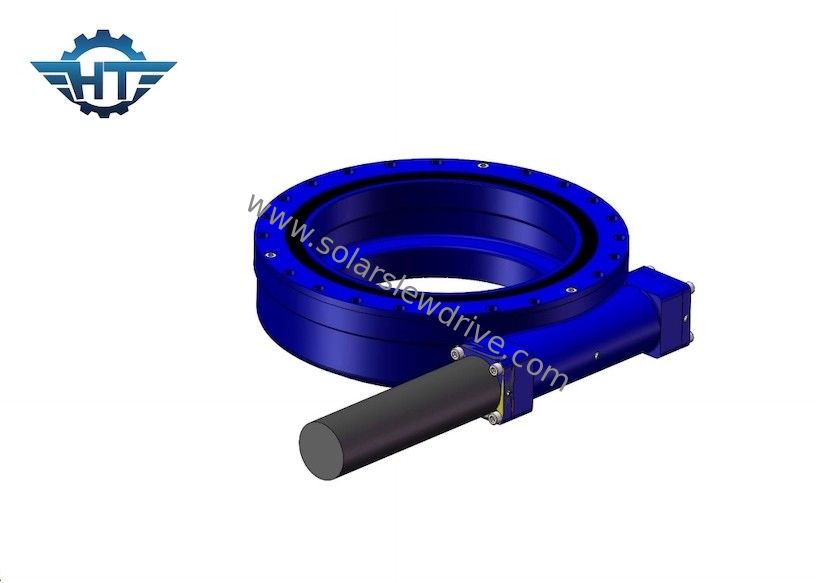

Horizontal SE12 Solar Slewing Drive Gearbox With Enclosed House For Outdoor

Horizontal SE12 Solar Slewing Drive Gearbox With Enclosed House For Outdoor

  • Horizontal SE12 Solar Slewing Drive Gearbox With Enclosed House For Outdoor
  • Horizontal SE12 Solar Slewing Drive Gearbox With Enclosed House For Outdoor
Horizontal SE12 Solar Slewing Drive Gearbox With Enclosed House For Outdoor
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE12"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: SE12 Gear Ratio: 78:1
Application: Outdoor Solar Tracking System Place Of Origin: Changzhou, China
Driver: 220VAC/380VAC Servo Motor Warranty: 5~10 Years
Certificate: ISO9001, CE Installation: Horizontal
High Light:

Horizontal solar Slewing Drive Gearbox

,

SE12 Solar Slewing Drive

,

solar Slewing Drive With Enclosed House

Horizontal Slewing Drive Gearbox With Enclosed House For Outdoor Solar Tracking System



Horizontal Slewing Drive Description



It is well known that factors such as vibration, high mechanical loads, contamination and moisture threaten the service life of slewing drive components, and these threats further affect the efficiency and service life of slewing drives. In order to avoid the occurrence of these high-risk factors, we adopt various advanced technologies, which can effectively avoid the threats of the above-mentioned high-risk factors. Hangtuo's slewing drives are available in different models and specifications. If the standard solution is not suitable for your application, we can also help you develop the most suitable slewing drive according to your working conditions.



Performance Table of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204





Installation instructions



SE enclosed housing slewing drive is widely used in engineering construction machinery, as well as solar energy, wind energy and a variety of long-term operation of automatic tracking machinery, and even industrial robotics field. It is designed to resist wind, rainstorm and other harsh environment, it can working outdoor. The SE series slewing drives are generally installed horizontally. And we also recommend to install horizontally considering the performance of the slewing drives.
