Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE14" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 330~360/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model Number: | SE14 | Raw Material: | QT |
|---|---|---|---|
| Holding Torque: | 54200 Nm | Tilting Torque: | 68000 Nm |
| Output Torque: | 6550 Nm | Static Axial Load: | 680 KN |
| Static Radical Load: | 230 KN | Weight: | 63 Kg |
| High Light: | Hydraulic Worm Gear Slew Drive Gearbox,680 kN Worm Gear Slew Drive,SE 14 Worm Gear Slew Drive |
||

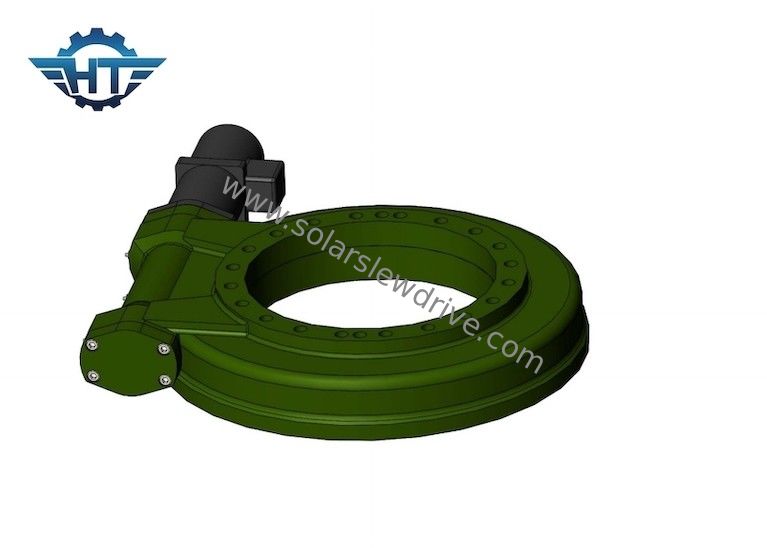

SE14 Big Hydraulic Slew Drive Gearbox With Enclosed Housing For Construction Machinery
Hydraulic Slew Drive Description
For slewing drives used on mechanical cranes, proper lubrication is required to operate well. At present, automatic lubrication systems are prevalent in the industry, and the appropriate lubricant is sent to the appropriate location when the equipment is running. This lubrication method allows the lubricant to be transported over a long distance in a wide temperature range, and also makes it easy for the lubricant to reach hard-to-reach points. All in all, this lubrication method prevents unscheduled downtime, thereby reducing operating costs and the risk of accidents.
Performace Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Applications
Typical applications include solar trackers, wind turbines, satellite antenna and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts, robot etc.
Transport, Handling & Storage
Transport only in horizontal position, impacts should be avoided.
Wear work gloves and be carseful when handling the slew drive.
Use the holes of the rings in the slew drives to fix bolts for safe hoisting, handling and placement.
Store only in a horizontal position and in closed rooms, keep it away from getting wet, the surface corrosion protection of exposed mating surfaces lasts approximately 1 month in closed packaging. Longer period storage requires special protective measures.
