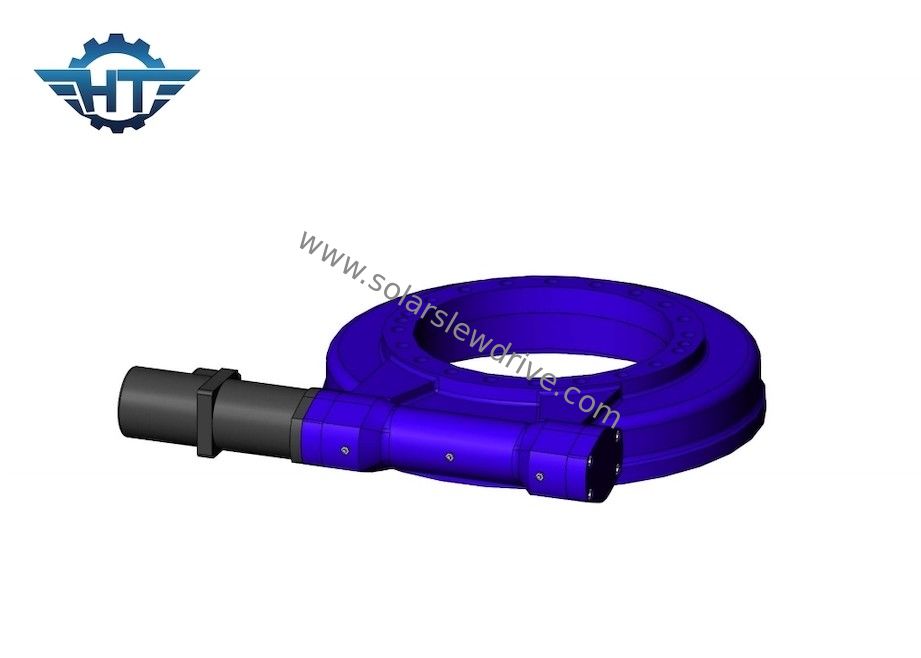

SE7 Horizontal Small Slew Drive Bearing For Solar Tracking System With Hourgalss Worm

SE7 Horizontal Small Slew Drive Bearing For Solar Tracking System With Hourgalss Worm

  • SE7 Horizontal Small Slew Drive Bearing For Solar Tracking System With Hourgalss Worm
  • SE7 Horizontal Small Slew Drive Bearing For Solar Tracking System With Hourgalss Worm
SE7 Horizontal Small Slew Drive Bearing For Solar Tracking System With Hourgalss Worm
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE7
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: SE7 Gear Ratio: 57:1
Application: Solar Tracking System Place Of Origin: Changzhou, China
Warranty: 5~10 Years Certificate: ISO9001, CE
Maintenance: Free Gearing Arrangement: Worm
High Light:

Horizontal Small Slew Drive Bearing

,

Solar Tracking Slew Drive Bearing

,

Hourglass Worm Slew Drive Bearing

SE7 Horizontal Small Slew Drive Bearing For Solar Tracking System With Hourgalss Worm



Small Slew Drive Bearing Description



In the industry of slewing drives, there are many models of slewing drives with different series. For cranes, the SE series is a frequently used category. This series of slewing drives is generally an enclosed design with lip seals, slewing ring assemblies, 360-degree rotation, and self-locking gear sets. Select models feature a dual worm gear design for increased torque capability. Furthermore, the device can also meet the application requirements in a high humidity environment, so that it is not easily affected by wet weather or even heavy rain.


Performance Parameters of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204


Applications


Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, diggers, and automotive lifts.



Advantages

Our slewing bearings are applied in occasions where heavy load is needed. Our newly designed slewing drive is a secure self-locking product, it's easy installation and have long field working life. Our experienced customer service representatives provide fast, reliable, and friendly customer service. Our flexible manufacturing and inventory management systems offer industry best lead time. Our products including modified standards or custom designs to meet specific application needs.



How to Choose?
There are many types of slew drives or slewing bearings, which can be selected taking into account the following factors.
1. Load capacity, direction and properties: The slew drive is suitable for bearing light loads, and roller bearings are suitable for heavy loads and impact loads.
2. Allowed speed
3. Rigidity
4. Tuning performance and installation error
5. Slew drive installation and disassembly
