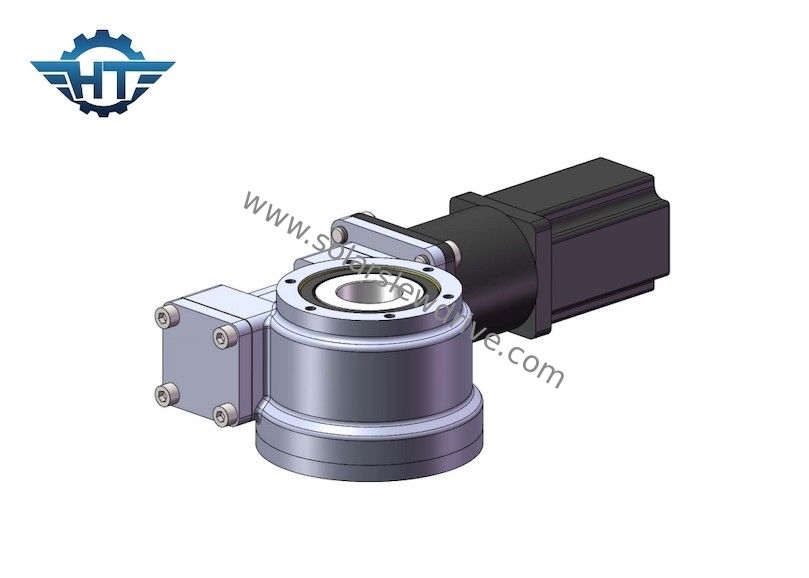

IP66 Enclosed SE Slew Drive Gearbox For Single Axis Tilted Solar Tracking System
Slew Drive Gearbox Description
As one of the world's major slewing drive manufacturers, Hangtuo has more than 20 years of experience in slewing drive manufacturing and gear design, providing different types of slewing drives and motors for matching applications. Airtop's slewing drives are designed according to customer requirements to respond to axial and radial forces and tipping torque requirements, often used in challenging applications.
Parameters of SE Series
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Applications
Slewing drives can be widely used for solar tracking system, CPV, CSP, HCPV, wind turbine and satellite antenna dish. Those products are designed for long life, working in hard environmental conditions.
Our Advantages
Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.
Slewing Drive with hourglass worm slewing drive which is based on the slewing bearing with strong tilting moment torque and static self-locking function. Multi-tooth contact surface is designed specially for driving high load.
Set up critical Quality Inspection points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.
We have advanced measurement device and measurement should be calibrated, check and only qualified gauge can be used.
