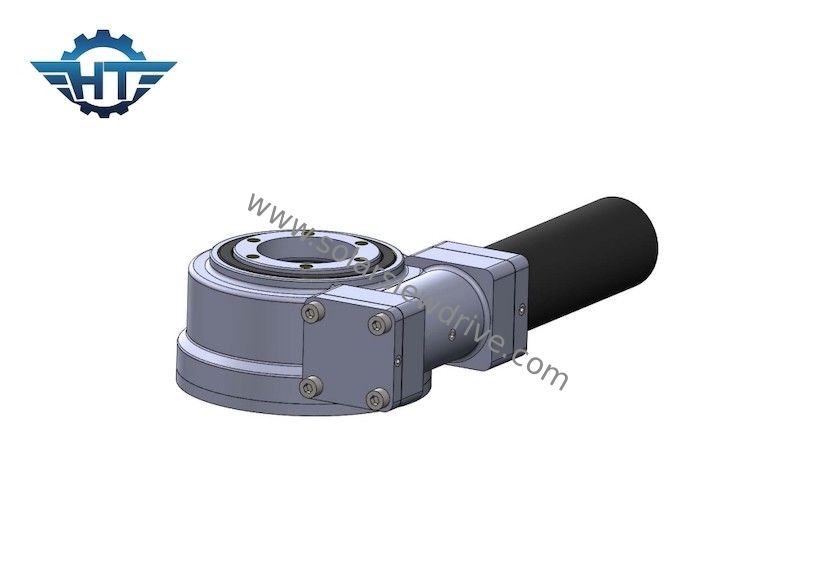

SE Horizontal Slew Drive Worm Gearbox With Gear Motor For Solar Tracking System
Slew Drive Worm Gearbox Description
SE slewing drive utilizes hourglass worm drive technology and adopts a multi-gear contact hourglass worm structure with good impact resistance and is suitable for more precise applications to achieve maximum gear torque and the most stable rotation. A standard swing drive is equipped with an enclosed housing and a single self-locking hourglass worm. When the power input is returned to neutral, the worm will lock the load in place without any external braking. This design makes the SE slewing drive an ideal solution for matching the relative rotation of two objects.
Performace of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Transport, Handling & Storage
Transport only in horizontal position, impacts should be avoided.
Wear work gloves and be careful when handling the slew drive.
Use the holes of the rings in the slew drives to fix bolts for safe hoisting, handling and placement.
Store only in a horizontal position and in closed rooms, keep it away from getting wet, the surface corrosion protection of exposed mating surfaces lasts approximately 1 month in closed packaging. Longer period storage requires special protective measures.
Transporting unpacked slew rings
Use suitable lifting gear/ never transport product vertically
Unpacked slew drives can be transported with lifting gear under the following conditions:
