Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 230~345/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | VE7 | Holding Torque: | 13200 Nm |
|---|---|---|---|
| Tilting Torque: | 7000 Nm | Output Torque: | 1750 Nm |
| Axial Load: | 34 KN | Radical Load: | 58 KN |
| Certificate: | ISO9001,CE | Warranty: | 5~10 Years |
| Highlight: | 7 Inches Vertical Solar Slew Drive,Slew Drive For Solar Tracking System,7000 Nm Vertical Solar Slew Drive |
||

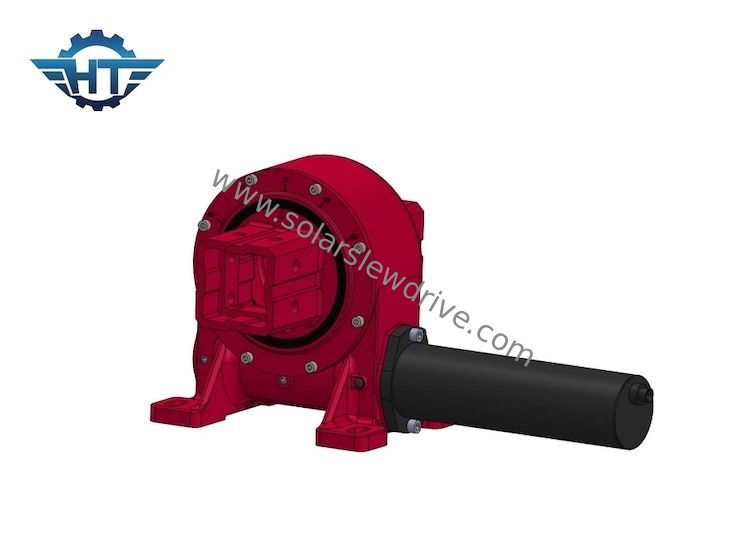

7 Inches Vertical Solar Slew Drive With Motor As Rotary Parts For Solar Tracking System
Solar Slew Drive Description
Slewing drives can be widely used for 360° rotation and variable speed, large torque and smooth transmission, high-precision matching or compact mechanisms mostly rely on slewing drives, and their special solutions and wide applications are as follows.
It can be used in in the relatively rotary parts of machinery, solar energy field like solar tracking system, rotary chassis of aerial working machinery, truck crane, rock drill, drilling machine, grasping wood machine, code molding machine. VE series slewing drives are widely applied solar power stations.
Due to the use of slewing bearing and hourglass worm structure, the slewing drive can achieve multi-tooth contact, has the characteristics of large transmission torque and stable operation; it can withstand large radial and axial loads and strong overturning moments ( Wind resistance ability), is widely used in solar photovoltaic power generation tracking system and other new energy industries by domestic and foreign customers.
Performace of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Our services
1. Well trained sales team service for you.
2. Small MOQ, usually sample is available.
3. Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4. Top quality: we have professional QC team to control the quality.
5. Timely delivery: we can send goods within 10~30 days after payment, it depend on products and quantity.
6. We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.
