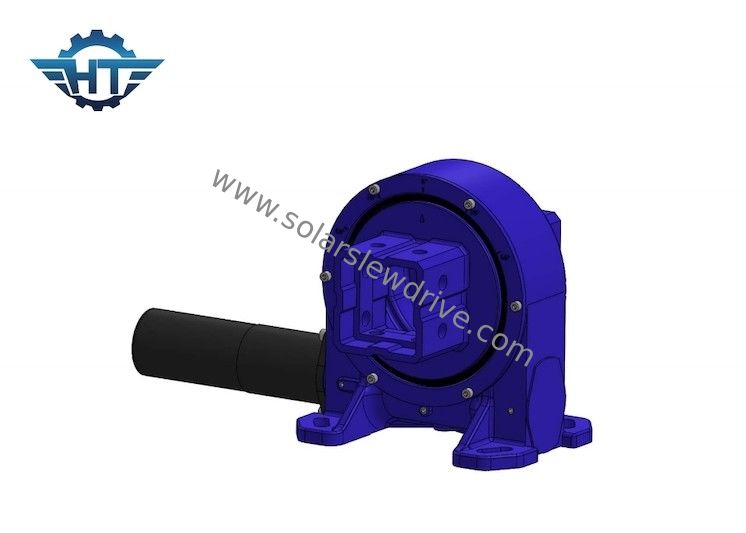

VE9 Slew Drive Gearbox With IP66 House For Solar Tracking System

VE9 Slew Drive Gearbox With IP66 House For Solar Tracking System

  • VE9 Slew Drive Gearbox With IP66 House For Solar Tracking System
  • VE9 Slew Drive Gearbox With IP66 House For Solar Tracking System
VE9 Slew Drive Gearbox With IP66 House For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand Name: Hangtuo Material: 50Mn, 42CrMo
Certificate: ISO9001, CE Axis: Single Axis
Motor: 24vdc Maintenance: Free
Color: As Requested Self-lock: Yes
High Light:

VE 9 Slew Drive Gearbox

,

Slew Drive Gearbox Solar Tracking System

,

Slew Drive Gearbox Single Axis

VE9 Slew Drive Gearbox With IP66 House For Solar Tracking System



Slew Drive Gearbox Description



The single-axis slewing drive is an industry standard, rotating around a single axis. It has the features of reliable, easy to install, and very widely used.



VE series slewing drives are specially designed for solar trackers and applications with horizontal axis output requirements. The fully enclosed vertical slewing drives of VE series are easy to install and do not require additional accessories to install. There are four mounting holes on the bottom of the unit, which can be directly mounted on the system.



To keep solar panels stable in strong winds, the VE series are high-power drives that can rotate and precisely position long arrays of panels for better energy harvesting solutions.



VE Type Data Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Features



The VE series of slewing devices offers dependable accuracy and a number of features and benefits.

Designed for single axis solar trackers and applications requiring horizontal axis output
Slewing bearing assembly used
360° rotation
Self-locking gear set
Input torque, output torque and installation can be customized
Electric/hydraulic motor option
