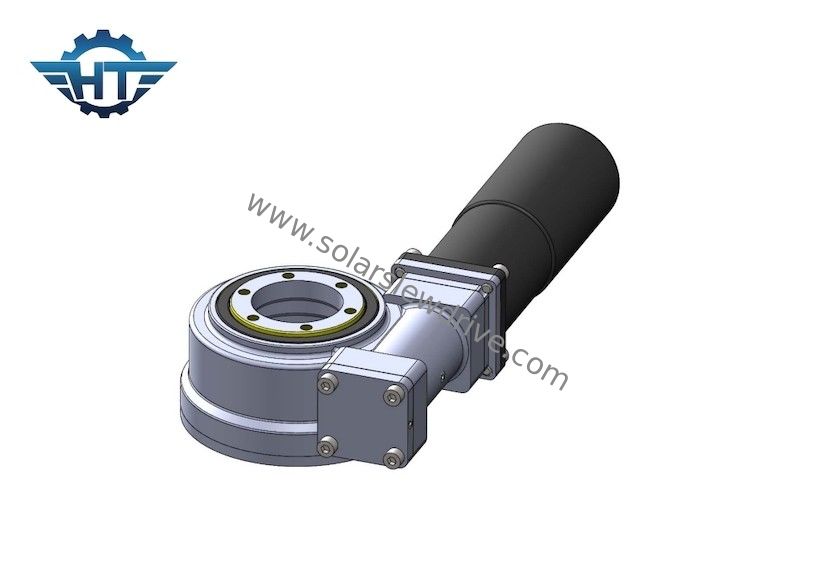

Slow Speed Small Solar Slew Drive High Transmission For Single Axis PV Tracking System

Slow Speed Small Solar Slew Drive High Transmission For Single Axis PV Tracking System

  • Slow Speed Small Solar Slew Drive High Transmission For Single Axis PV Tracking System
  • Slow Speed Small Solar Slew Drive High Transmission For Single Axis PV Tracking System
Slow Speed Small Solar Slew Drive High Transmission For Single Axis PV Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE9”
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Gear Ratio: 61:1 Normal Output Torque: 4400 Nm
Place Of Origin: Changzhou, China Self-lock: Yes
Protect Feature: IP66 Usage: Solar Trackers
Holding Torque: 30800 Nm Tilting Torque: 45000 Nm
High Light:

Solar Slew Drive High Transmission

,

PV Tracking System Solar Slew Drive

,

Slow Speed Small Solar Slew Drive

Slow Speed High Transmission Small Solar Slew Drive For Single Axis PV Tracking System



Slow Speed Slew Drive Description



Our slewing drives are self-locking worm gears. The worm adopts an annular enveloping worm. It not only has the functions of connection, rotation and support of slewing bearing, but also has the advantages of compact structure, large output torque and stable transmission of worm drive, and has a long service life. At the same time, it is easy to install, saves a lot of installation space, is easy to maintain, and can greatly save costs.



Parameters of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Application



Construction machinery aerial work vehicle field
All aerial work vehicles require a high safety factor for the slewing drive device, and the self-locking and reverse self-locking functions of the slewing drive greatly meet the high safety requirements of aerial work vehicles. It is an important factor for the majority of users to choose it as an accessory for aerial work platforms. On the other hand, the worm gear drive has a larger transmission speed ratio, which improves the safety factor and at the same time omits a set of worm gear reducers for the host, thereby reducing the manufacturing cost of the equipment.
