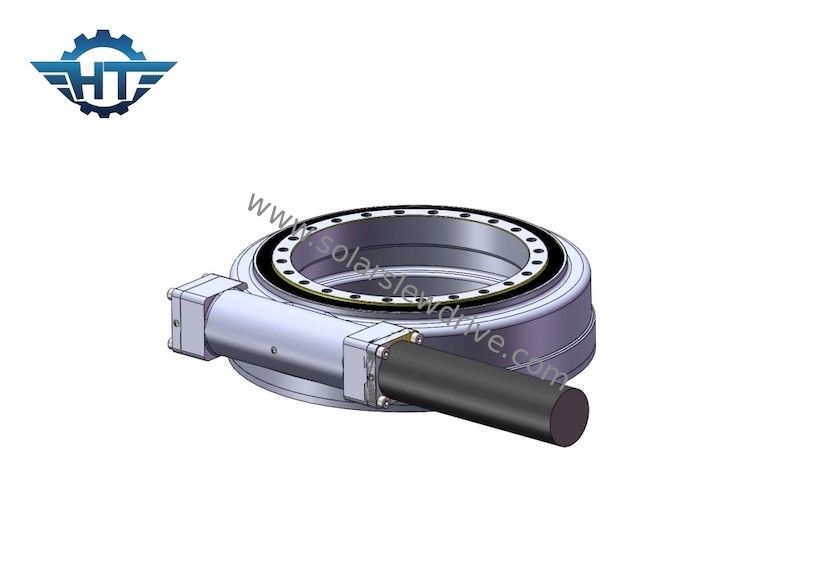

Enclosed Worm Gear Solar Slew Drive For Automation Machine Solar Energy

Enclosed Worm Gear Solar Slew Drive For Automation Machine Solar Energy

  • Enclosed Worm Gear Solar Slew Drive For Automation Machine Solar Energy
  • Enclosed Worm Gear Solar Slew Drive For Automation Machine Solar Energy
Enclosed Worm Gear Solar Slew Drive For Automation Machine Solar Energy
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE21"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: SE21"
Gear Ratio: 125:1 Rated Output Torque: 16 KNm
Tilting Torque: 205 KNm Efficiency: 40%
Color: RAL 9006 Or As Requested Application: Automation Machine
High Light:

Enclosed Worm Gear Solar Slew Drive

,

Solar Slew Drive For Automation Machine

,

16 kNm Solar Slew Drive

Big Size Enclosed Worm Gear Slew Drive For Automation Machine And Solar Energy



Big Size Slew Drive Description



Our big size slewing drive have a large transmission ratio and more compact than staggered axle oblique gear mechanism. Two wheel meshing tooth surface for line contact so that the bearing capacity is much higher and the backlash is smaller and lower noise. The big size slewing drive have the feature of self-locking and can realize the reverse self-locking, that is to say, only the worm to drive the worm wheel. With this feature, the worm mechanism used in heavy machinery can play a safety protection role.



Parameters of SE Series Slewing Drives



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Product Descripition



Place of Origin: Jiangsu, China (Mainland)
Brand Name: Hangtuo

Static Axial rating: 1600 KN

Static radial rating: 640 KN

Dynamic axial rating: 385 KN
Dynamic radial rating: 335 KN

Condition: New
Output torque: 16 kNm
Gear Ratio: 125:1

Tilting moment torque: 205 KN.m
Holding torque:105 KN.m

Motor: 125CC,160CC,200CC hydraulic motor
After-sales Service Provided: Engineers available to service machinery overseas



Hangtuo slewing drives and slewing bearing/ring can be used for construction equipment and automation robotics system, such as truck mounted cranes, offshore carnes, excavator.



Advantages


1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function
