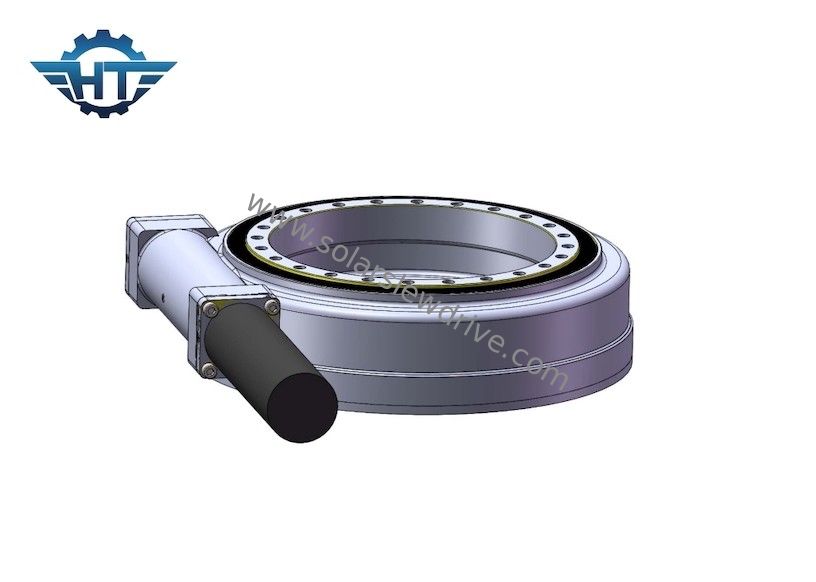

Self Locking Single Axis Slewing Drive SE14 For Solar Tracking System

Self Locking Single Axis Slewing Drive SE14 For Solar Tracking System

  • Self Locking Single Axis Slewing Drive SE14 For Solar Tracking System
  • Self Locking Single Axis Slewing Drive SE14 For Solar Tracking System
Self Locking Single Axis Slewing Drive SE14 For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE14"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1200/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: SE14 Holding Torque: 54200 Nm
Certificate: ISO9001,CE Painted: Available
Tilting Torque: 68000 Nm Output Torque: 6550 Nm
Axial Load: 680 KN Radical Load: 230 KN
High Light:

Self Locking Single Axis Slewing Drive

,

SE14 Single Axis Slewing Drive

,

230 kN Solar Tracking Slewing Drive

Self Locking Single Axis Slewing Drive For 30 Year Field Life Solar Tracking System



Single Axis Slewing Drive Description



The slewing drive can be used for circular motion in crane turntables, rotating machinery, and other machines that perform circular work. Once the product is put into production, it can be widely used in the field of construction machinery represented by aerial work vehicles and truck cranes, as well as in the field of new energy represented by solar photovoltaic power generation and wind power generation, as well as other fields such as automation, machine tool manufacturing, and aerospace communications.



Performace of SE Series


Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Applications



Photovoltaic power generation is a very extensive and important application field of slewing drive. The slewing drive is used as a solar photovoltaic tracking system as a rotating component. The battery packs on the solar system are always at the optimum reception angle.
