| Type: | Vertical Single Slewing Drive | Material: | QT |
|---|---|---|---|
| Application: | Concentrated Solar Trackers | Warranty: | 10 Years |
| Color: | Customer Required | Size: | 3 Inches - 25 Inches |
| Motor: | 24V DC | Feature: | Long Life And Self Locking |
| Highlight: | Single Axis Small Solar Slew Drive,QT Vertical Solar Slew Drive,Concentrated Trackers Solar Slew Drive |
||

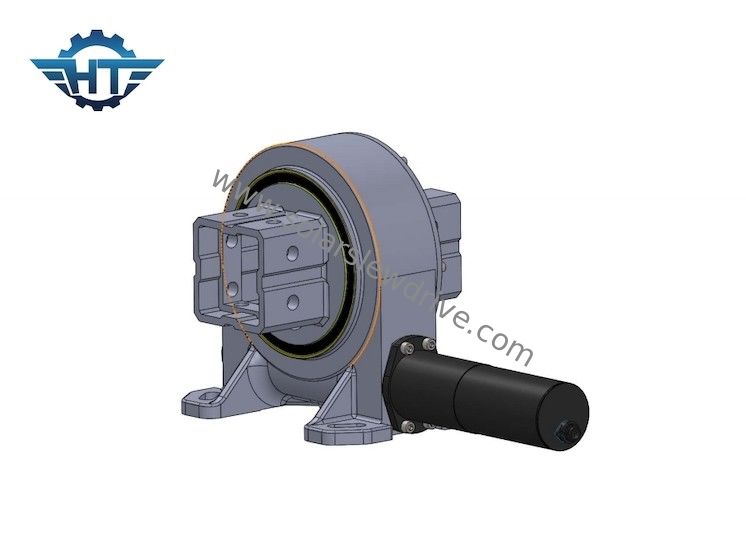

Single Axis Small Size Vertical Slewing Drive For Concentrated Solar Trackers
Vertical Slewing Drive Description
The housing of the slewing drive is a cast part and can be dimensioned according to customer requirements. The closed housing protects the slewing drive from contamination, damage and grease leakage, ensuring smoother operation and longer life of the slewing drive.
Additionally, the seals mounted on the housing structure protect the interior of the assembly from contamination if the slewing drive is used in wet or dirty environments. Because the performance and reliability of the slewing drive depends to a large extent on the internal stability. Therefore, high-pressure water guns cannot be used to clean the rotary drive, and the pressurized water will penetrate the seal and enter the interior of the rotary drive, which will greatly reduce the service life.
Vertical Slew Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Maintainance
Proper and regular lubrication is required to ensure stable operation and long service life of the slewing drive. Grease is conducive to the better functioning of the rotary drive, reducing wear, reducing noise during operation, extending service life and reducing heat generation.
