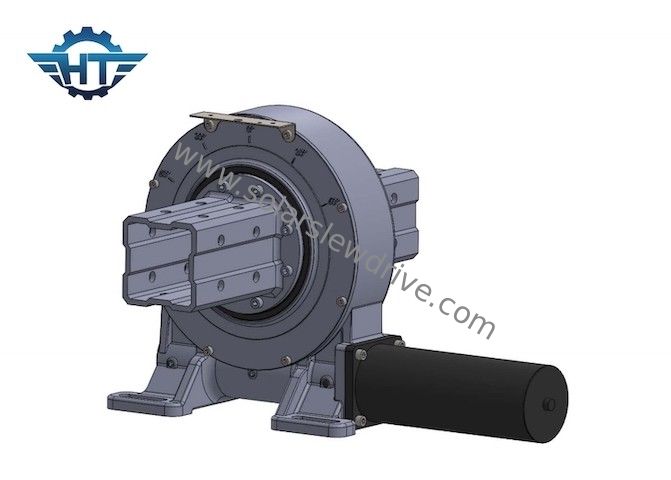

Small 24V DC Solar Slewing Drive With Enclosed Housing For PV Panel System

Small 24V DC Solar Slewing Drive With Enclosed Housing For PV Panel System

  • Small 24V DC Solar Slewing Drive With Enclosed Housing For PV Panel System
  • Small 24V DC Solar Slewing Drive With Enclosed Housing For PV Panel System
Small 24V DC Solar Slewing Drive With Enclosed Housing For PV Panel System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: QT Warranty: 10 Years
Service: OEM Rotate: ±60° Rotation
Application: PV Panel System Installation Site: Roof And Field
Packaging: Plywood Box Motor: 12V/24V DC
High Light:

Enclosed Small Solar Slewing Drive

,

24V DC Solar Slew Drive

,

PV Panel System Solar Slew Drive

High Accuracy Small Solar Slewing Drive With Enclosed Housing For PV Panel System



Small Solar Slewing Drive Description



The rotary motion of the slewing drive is driven by a hydraulic motor or an electric motor. It is easy to find a matching hydraulic motor in the market, and it also conforms to industry standards, which can save a lot of time. However, motor adapters are sometimes required to match the connection.



Technical Data of Vertical Solar Slewing Drive


Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Our Advantages



1. Direct contact with experienced technical specialists, good advice and satisfied agreements.

2. Modifications to suit customers’ demands can be executed swiftly and reliably.

3. 20 years producing experience, strict quality control can be the industry’s best solution guarantee.

4. The products have ISO 9001, CE certifiactions

5. Traceability production, full implementation of control process to ensure high quality slewing drives.



Applications



Small backlash and zero backlash slewing drives can be widely used for solar tracking system, CPV, CSP, HCPV and satellite antenna dish. Those products are designed for long life, working in hash environmental conditions and in demand of high accuracy.
