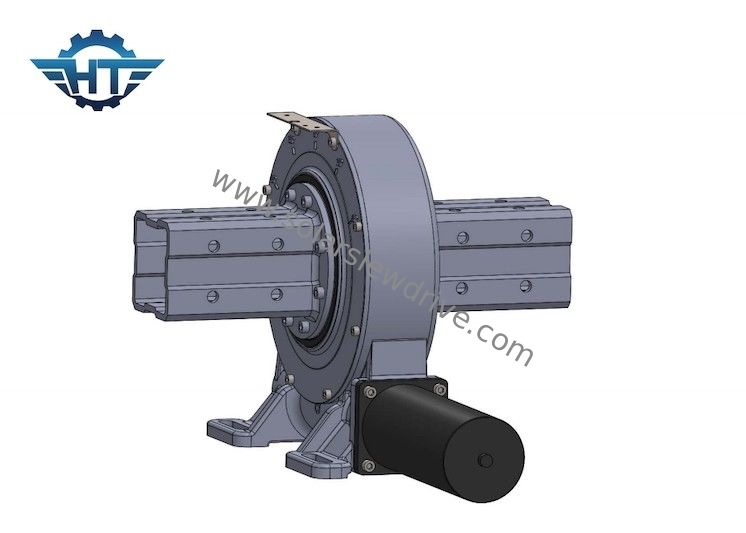

VE7 Vertical Worm Gear Solar Slew Drive With Planetary Electric Gear Motors

VE7 Vertical Worm Gear Solar Slew Drive With Planetary Electric Gear Motors

  • VE7 Vertical Worm Gear Solar Slew Drive With Planetary Electric Gear Motors
  • VE7 Vertical Worm Gear Solar Slew Drive With Planetary Electric Gear Motors
VE7 Vertical Worm Gear Solar Slew Drive With Planetary Electric Gear Motors
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE7"
Gear Ratio: 57:1 Rated Output Torque: 1750 Nm
Holding Torque: 13200 Nm Tilting Torque: 7000 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

Vertical Worm Gear Solar Slew Drive

,

VE7 Planetary Solar Slew Drive

,

Electric Gear Motors Solar Slew Drive

VE7 Vertical Worm Gear Slew Drive With Planetary Electric Gear Motors For Solar System



Vertical Worm Gear Slew Drive Description



The slewing drive is a complete system assembly that can be easily installed and integrated into existing system programs. Able to bear axial, radial and overturning moments at the same time. The worm is driven by a hydraulic motor or motor to drive the slewing bearing to rotate. The surface of the housing is spray-coated and fully enclosed with seals to protect the slewing drive from contamination, damage and grease loss.



Technical Data Of Vertical Slewing Drive


Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.



Applications



Slewing drives are used worldwide for:
• Vehicle and crane systems.
• Rotation of attachments such as excavators, hydraulic tongs and forklifts.
• Facility management (automated systems).
• Loading and unloading equipment.
• GPS
