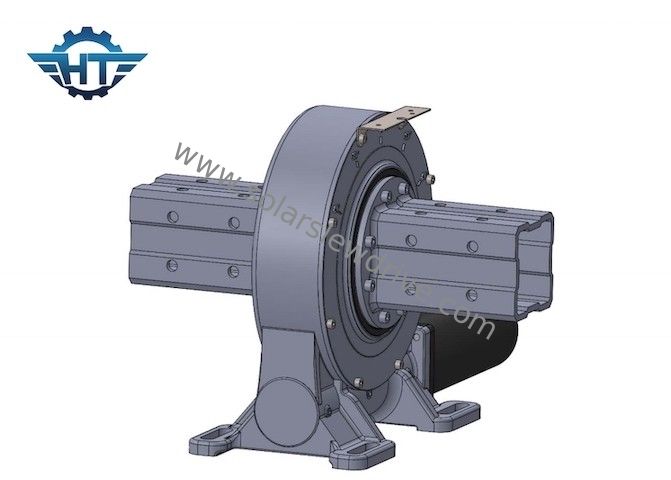

Compact Structure Worm Gear Solar Slew Drive For Mirror Collecting CSP System

Compact Structure Worm Gear Solar Slew Drive For Mirror Collecting CSP System

  • Compact Structure Worm Gear Solar Slew Drive For Mirror Collecting CSP System
  • Compact Structure Worm Gear Solar Slew Drive For Mirror Collecting CSP System
Compact Structure Worm Gear Solar Slew Drive For Mirror Collecting CSP System
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Vertical Slewing Drive Material: QT
Application: Mirror Collecting CSP System Warranty: 10 Years
Color: Customer Required Size: 3 Inches - 25 Inches
Motor: 24V DC Feature: Long Life
High Light:

Compact Structure Solar Slew Drive

,

CSP Worm Gear Solar Slew Drive

,

Mirror Collecting Solar Slew Drive

Compact Structure Worm Gear Solar Slew Drive For Mirror Collecting CSP System



Worm Gear Solar Slew Drive Description



Slewing drives can be widely used for 360° rotation and variable speed, large torque and smooth transmission, high-precision matching or compact mechanisms mostly rely on slewing drives.



The mirror collection CSP system is mainly composed of a heat collecting tube, a collecting mirror surface, a supporting structure and a control system. The slewing drives are the key part in the supporting structure.



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Applications



The slewing drive specially developed and designed to meet the requirements of solar tracking system, the product is used in solar tracker rotary device, mainly used for flat single-axis, double-axis, concentrated photovoltaic tracking system, tower heliostat, dish Stirling power generation The application range of trough concentrator heating, high precision, high strength and high reliability.
