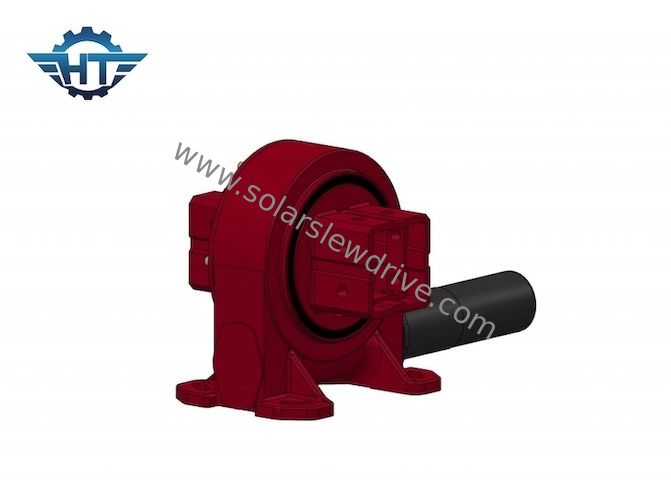

9 Inch Vertical Slew Drive Gearbox With High Output Torque For Linkage Solar Trackers

9 Inch Vertical Slew Drive Gearbox With High Output Torque For Linkage Solar Trackers

  • 9 Inch Vertical Slew Drive Gearbox With High Output Torque For Linkage Solar Trackers
  • 9 Inch Vertical Slew Drive Gearbox With High Output Torque For Linkage Solar Trackers
9 Inch Vertical Slew Drive Gearbox With High Output Torque For Linkage Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: VE9"
Gear Ratio: 61:1 Rated Torque: 2250 Nm
Holding Torque: 30800 Nm Tilting Torque: 16000 Nm
Efficiency: 40% Square Output: 110 * 110 Mm
High Light:

High Output Torque Slew Drive Gearbox

,

9 Inch Vertical Slew Drive Gearbox

,

Linkage Solar Trackers Slew Drive

9 Inch Vertical Slew Drive Gearbox With High Output Torque For Linkage Solar Trackers​



Vertical Slew Drive Gearbox Description



Slewing drives offer an efficient way to transmit high torque with less size, weight and cost. In most application scenarios, designers will use these efficiencies to specify drive specifications that meet performance requirements, just like any other component in the system.



The VE9 slew drive with 110×110 mm and 94×94 mm square output tube which is perfectly used flat single axis solar tracking system. It features high IP grade which could protect the drive from various environment conditions such as dust, water, sand etc. We are manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan; it is designed for 30 years using life. We provide the whole lifespan technical support and 36 months to 60 months warranty based on different types of slew drives



VE9 Vertical Slewing Drive Technical Data



Model VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 2250 N.m
Tilting Moment Torque 16 KN.m Holding Torque 30.8 KN.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%



Advantages



1. High backholding torque to improve the solar tracking system's safety

2. Hard stop inside in case the mulfunctioning of the software control system

3. Enveloping worm drive inside

4. Multi tooth contact to ensure high load

5. Self-locking function

6. Square tube output 110*110 mm
