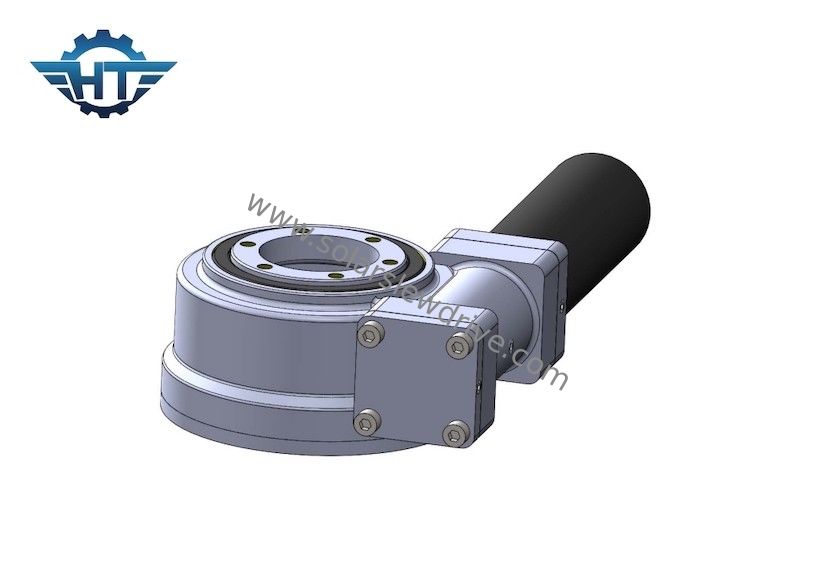

SE1 Horizontal Slew Drive Gearbox Single Axis Worm For Solar Tracking System

SE1 Horizontal Slew Drive Gearbox Single Axis Worm For Solar Tracking System

  • SE1 Horizontal Slew Drive Gearbox Single Axis Worm For Solar Tracking System
  • SE1 Horizontal Slew Drive Gearbox Single Axis Worm For Solar Tracking System
SE1 Horizontal Slew Drive Gearbox Single Axis Worm For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE1"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~155/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: QT Model: SE1
Gear Ratio: 32:1 Output Torque: 400Nm
Holding Torque: 1800 Nm Tilting Torque: 1000Nm
Accuracy: 0.01° Self-locking: Yes
High Light:

Single Axis Slew Drive Worm Gearbox

,

SE1 Horizontal Slew Drive Gearbox

,

400 Nm Slew Drive Gearbox

SE1 Horizontal Single Axis Worm Gear Slew Drive For Solar Tracking System



Horizontal Single Axis Slewing Drive Description



Changzhou Hangtuo Machinery Co., Ltd. has developed a slewing drive based on decades of experience in design and production. Its components perfectly match each other, and the ready-to-install slewing device is very easy to assemble and maintain. They can be driven by hydraulic or electric motors. With its worm and spur gear slewing drive units, Airtop's product portfolio includes a wide range of solutions for steering, rotary and slewing applications.



Technical Parameters of SE1 Slewing Drive



Model SE1
Ratio 32:1
Rated Output Torque (N.m) 384
Max Output Torque (3 sec)(N.m) 460
Rated Rotate Speed (RPM) 0.06
Tilting Torque (N.m) 1500
Holding Torque (N.m) 3000
Axial Load (kN) 30
Radial Load (kN) 16
Efficiency 40%
Precision (°) 0.1
Self-locking Yes
Weight (kg) 6
Installation Holes 6*M8
Center Circle Diameter Φ 40 mm
Inner Hole Φ 30 mm
Work Temperature - 30℃ ~+80℃ (optional special grease used in colder or hotter places)
Gear Motor Matched 24V, 2RPM, 25W, 30Nm, <8A



Our Advantages



1. ISO 9001:2008 certificate

2. High qualified material, low MOQ, excellent quality, competitive price

3. Standard or non-standard both are acceptable

4. OEM available

5. Stronger loading capacity, huge axial and radical force capacity

6. Independent R&D team

7. Strict QA, QC management

8. Sufficient stock

9. Short lead time, fast delivery time
