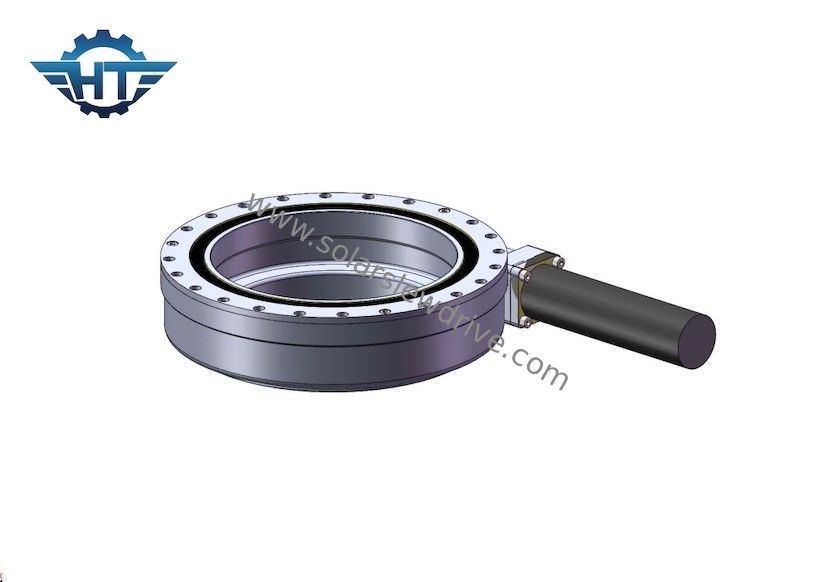

SE Horizontal Slewing Drive Gearbox With Gear Motor For Solar Tracking System

SE Horizontal Slewing Drive Gearbox With Gear Motor For Solar Tracking System

  • SE Horizontal Slewing Drive Gearbox With Gear Motor For Solar Tracking System
  • SE Horizontal Slewing Drive Gearbox With Gear Motor For Solar Tracking System
SE Horizontal Slewing Drive Gearbox With Gear Motor For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE14"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 330~360/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model Number: SE14 Weight: 63 Kg
Holding Torque: 54200 Nm Tilting Torque: 68000 Nm
Output Torque: 6550 Nm Static Axial Load: 680 KN
Static Radical Load: 230 KN Raw Material: 50Mn, 42CrMo

SE Horizontal Slewing Drive Gearbox With Gear Motor For Solar Tracking System



Slewing Drive Gearbox Description



Slewing drive is also called slewing gear device, slewing drive device, slewing drive pair, slewing reducer, slewing turntable, etc. The main components of slewing drive are: slewing bearing, worm, casting base and some standard parts such as bearings, bolts, etc. The slewing drive device uses axle motion to reduce force consumption and play a role in safety protection.



Performace of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Application



Slewing drives are mainly used in special vehicle steering platforms, heavy-duty flatbed trucks, container cranes, truck-mounted cranes, truck cranes, aerial work vehicles, cranes, gantry cranes, small wind power stations, aerospace communications, satellite reception, solar tracking systems and many other industries. Especially in recent years, the rapid development of solar photovoltaic power generation industry is widely used. The rotary drive is used in the solar photovoltaic power generation industry, and is generally equipped with a rotary geared motor or an AC geared motor; in construction machinery, a hydraulic motor is mainly configured as a power drive.
