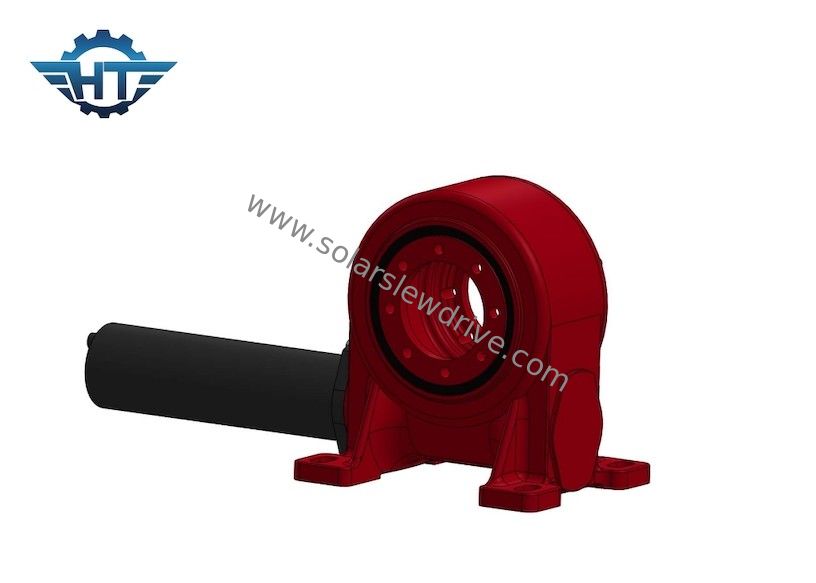

Vertical Single Axis Slewing Drive 1750 Nm For Sun Tracking Panel Mounting

Vertical Single Axis Slewing Drive 1750 Nm For Sun Tracking Panel Mounting

  • Vertical Single Axis Slewing Drive 1750 Nm For Sun Tracking Panel Mounting
  • Vertical Single Axis Slewing Drive 1750 Nm For Sun Tracking Panel Mounting
Vertical Single Axis Slewing Drive 1750 Nm For Sun Tracking Panel Mounting
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE7"
Gear Ratio: 57:1 Rated Output Torque: 1750 Nm
Holding Torque: 13200 Nm Tilting Torque: 7000 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

Vertical Single Axis Slewing Drive

,

1750 Nm solar Slewing Drive

,

Sun Tracking Panel Mounting Slewing Drive

Vertical Single Axis Slewing Drive For Sun Tracking Solar Panel Mounting Tracking Systems



Vertical Single Axis Slewing Drive Description



1. A large transmission ratio can be obtained, which is more compact than the staggered shaft helical gear mechanism.

2. The meshing tooth surfaces of the two wheels are in line contact, and its bearing capacity is much higher than that of the staggered shaft helical gear mechanism.

3. The worm gear slewing drive is equivalent to the screw drive, which is a multi-tooth meshing drive, so the drive is stable and the noise is small.

4. It is self-locking. When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking, that is, only the worm can drive the worm, but not the worm. Such as the self-locking worm mechanism used in its heavy machinery, its reverse self-locking can play a role in safety protection.



Technical Data


Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg


Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
