VE5 Single Axis Small Slew Drive Motor Matched With Planetary Gearbox

VE5 Single Axis Small Slew Drive Motor Matched With Planetary Gearbox

  • VE5 Single Axis Small Slew Drive Motor Matched With Planetary Gearbox
  • VE5 Single Axis Small Slew Drive Motor Matched With Planetary Gearbox
VE5 Single Axis Small Slew Drive Motor Matched With Planetary Gearbox
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Slewing Drive Material: QT
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Size: 3 Inches - 25 Inches
Motor: 24V DC Feature: Long Life
High Light:

Solar Tracker Slew Drive Single Axis

,

Motor Matched Small Slew Drive

,

Small Slew Drive With Planetary Gearbox

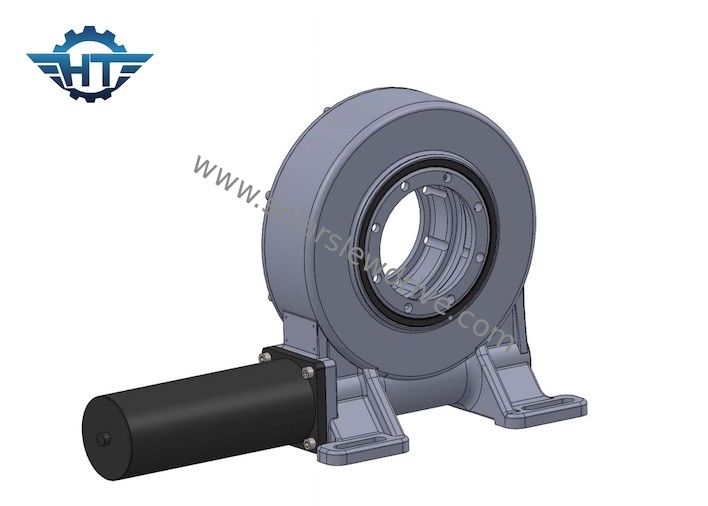

VE5 Single Axis Small Slew Drive Motor Matched With Planetary Gearbox



Small Slew Drive Description



The worm gear and worm drive have the characteristics of reverse self-locking, which can realize reverse self-locking, that is, only the worm gear can be driven by the worm, but the worm cannot be driven by the worm gear. When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking, that is, only the worm can drive the worm wheel, but the worm cannot be driven by the worm wheel. Such as the self-locking worm mechanism used in its heavy machinery, its reverse self-locking can play a role in safety protection. This feature makes the slewing drive device widely used in lifting, aerial work and other equipment. While improving the technological content of the main engine, it also greatly improves the operation stability and safety factor of the main engine. It is an important embodiment of the safe construction application of mechanical equipment.



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Features



1. Rotate from 0~180°

2. Connect a driving motor on the left or right side

3. Grease filled before factory

4. Simple installation

5. Low maintenance

6. The gear is self-locking; therefore a brake is not necessary

7. High backholding torque, suitable for vertical installation
