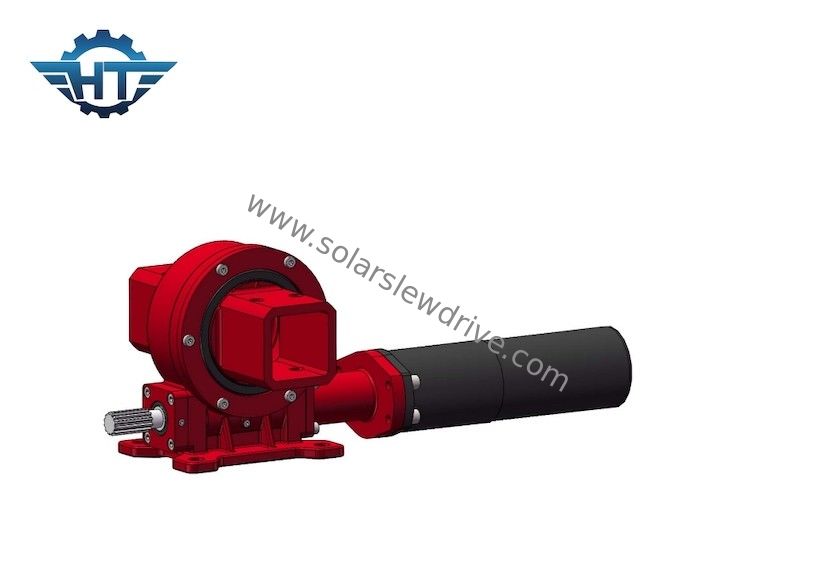

Single Axis Solar Tracker Small Slew Drive With 24vdc Electrical Motor For Concentrated Solar Trackers
Single Axis Slewing Drive Description
Due to the use of slewing bearing and annular worm structure, the slewing drive reducer can achieve multi-tooth contact, and has the characteristics of large transmission torque and stable operation; it can withstand large radial and axial loads and strong overturning moment. (wind resistance ability), it is being widely used in solar photovoltaic power generation tracking system and other new energy industries by domestic and foreign customers. The products currently have 9 models ranging from 3 inches in diameter to 25 inches in diameter, and more than 60 varieties, which can meet the needs of different forms of photovoltaic, photoelectric, light and heat general and precision tracking.
Vertical Slewing Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Applications
The products are slewing drive reducers, slewing bearings, etc., which are mainly used in solar photovoltaic power generation single and double axis tracking systems, construction machinery, port machinery and small wind power stations, satellite radar tracking and other fields.
