Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Brand Name: | Hangtuo | Material: | QT |
|---|---|---|---|
| Rotation Axis: | Single Axis | Certificate: | ISO9001, CE |
| Motor: | 220V AC, 24V DC | Maintenance: | Easy |
| Color: | As Requested | Self-lock: | Yes |
| High Light: | Vertical Solar Slew Drive Gearbox,fence type Solar Slew Drive,Single Sun Tracking Solar Slew Drive |
||

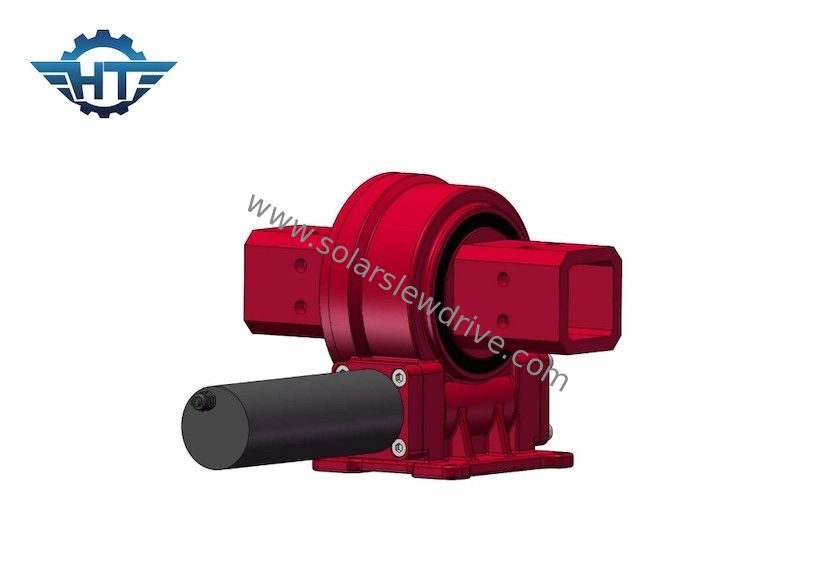

9" Vertical Solar Slew Drive Gearbox For Single Sun Tracking System
Solar Slew Drive Gearbox Description
SE series slewing drive reducer features
◆It adopts fence type structure design, which can resist the harsh natural environment such as sandstorm and rainstorm, and is suitable for outdoor use.
◆In order to bring maximum convenience to customers' use, a common installation structure is adopted to enhance the interchangeability of products.
VE Model Slewing Drive Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Application
SE series products are widely used in relatively rotating parts in the field of machinery and solar energy
● Photovoltaic tracking power generation level and pitch angle drive
● Rotation at the chassis of the aerial work vehicle
● Drive the truck-mounted boom to rotate
