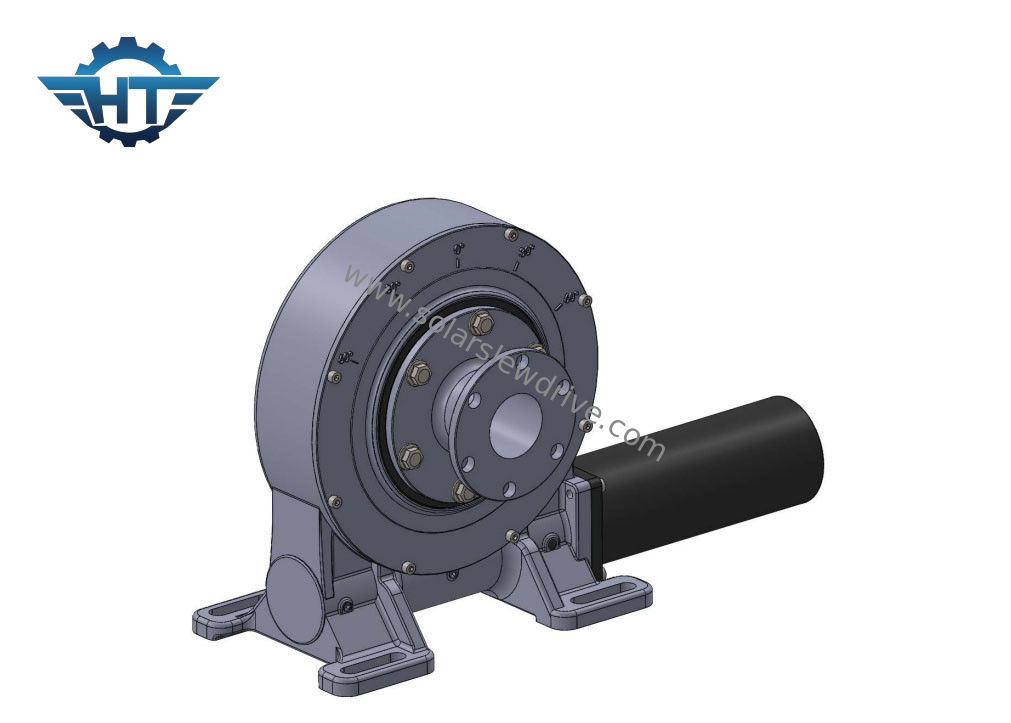

Vertical Single Axis Solar Slew Drive Worm Gear Enclosed House For PV Trackers

Vertical Single Axis Solar Slew Drive Worm Gear Enclosed House For PV Trackers

  • Vertical Single Axis Solar Slew Drive Worm Gear Enclosed House For PV Trackers
  • Vertical Single Axis Solar Slew Drive Worm Gear Enclosed House For PV Trackers
Vertical Single Axis Solar Slew Drive Worm Gear Enclosed House For PV Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: QT Warranty: 10 Years
Application: PV Trackers Rotate Type: Single Axis
Color: As Requested Installation Site: Roof And Field
Feature: Quick Installation Motor: 12V/24/220V
High Light:

Vertical Solar Slew Drive Worm Gear

,

Enclosed House Solar Slew Drive

,

Solar Slew Drive For PV Trackers

Vertical Single Axis Worm Gear Enclosed House Slew Drive For PV Trackers



Worm Gear Slewing Drive Description



In order to meet the rotation of the relative rotating structure, you can design the installation position of the device to be parallel to the ground or with a slope of several degrees. The enclosed house type horizontal slewing drive reducer is assembled by a house type base, a slewing gear, a worm and supporting parts. It can use an electric motor or a hydraulic motor as a power input source to drive the reducer to rotate clockwise and counterclockwise. Because the slewing bearing is used as the main design component, the device has a strong overturning moment and axial force. Compared with the reducer with the same parameters, the device has a small size and is easy to install and maintain.



VE Series Slewing Drive Data Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Applications



Thanks to their high load capacity, slewing ring bearings can be used for a wide range of applications. The areas of deployment range from excavators and cranes, opencast mining and wind turbines, solar energy to antennae.
