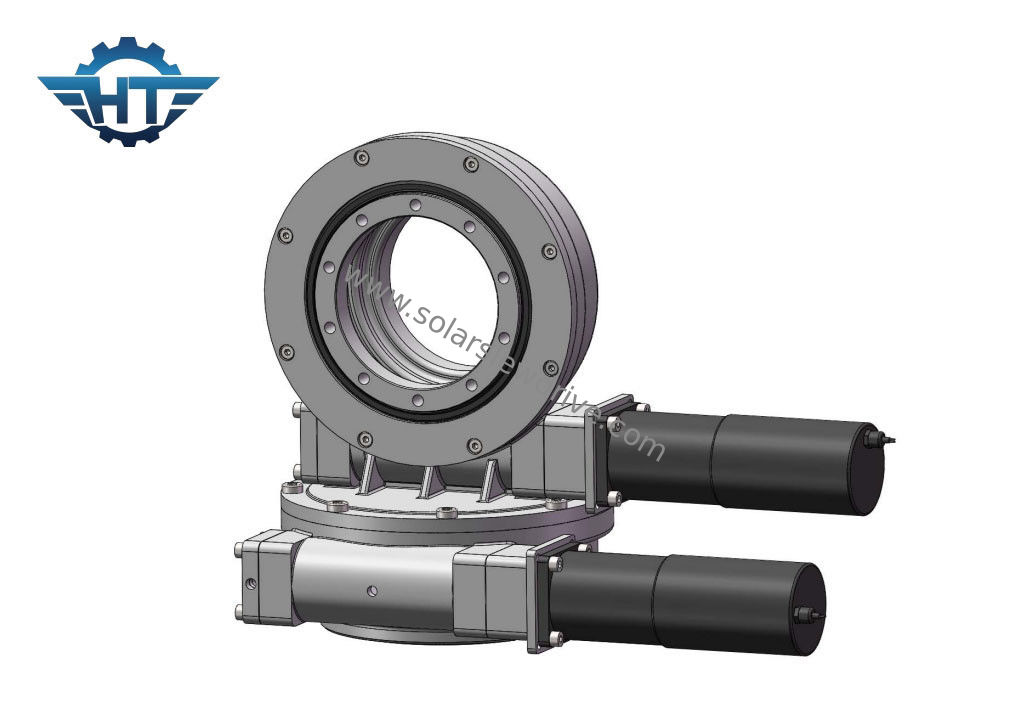

Worm Gear Dual Axis Slewing Drive Gearbox Self Locking For Home Solar Tracker

Worm Gear Dual Axis Slewing Drive Gearbox Self Locking For Home Solar Tracker

  • Worm Gear Dual Axis Slewing Drive Gearbox Self Locking For Home Solar Tracker
  • Worm Gear Dual Axis Slewing Drive Gearbox Self Locking For Home Solar Tracker
Worm Gear Dual Axis Slewing Drive Gearbox Self Locking For Home Solar Tracker
Product Details:
Place of Origin: China
Certification: CE, ISO9001
Model Number: SDE
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand Name: Hangtuo Material: QT
OEM: Available Certificate: ISO9001, CE
Motor: Electrical Motor Package: Plywood Case
Color: As Requirement Precision: ≤0.1°
High Light:

Gear Dual Axis Slewing Drive

,

Slew Drive Gearbox For Home Solar Tracker

,

Self Locking Dual Axis Slewing Drive

Worm And Self Locking Gear Dual Axis Slewing Drive For Home Solar Tracker



Description



Hangtuo Machinery Co., Ltd. specializes in the production of rotary drives. The company has strong technical force, strong production capacity and complete testing equipment. The company has been adhering to the concept of integrity, innovation, high technology and high-quality service, and does its best to meet the needs of customers. Our products have the characteristics of high precision, long life and exquisite workmanship. We can also carry out professional optimization design for different customers to meet the special application needs of customers.



SDE Slewing Drive Data Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Features



We plans to establish the most professional inspection laboratory in slewing driving industry.

Raw material inspection test: portable Sclerometer

Surface: Thickness Gauge

Electrical performance: motor torsion tester

Anti-errosion: salt spray test machine

Anti-aging: UV test machine

Thermal adapdation: high low temperature chamber

Other jigs & fixtures toolings
