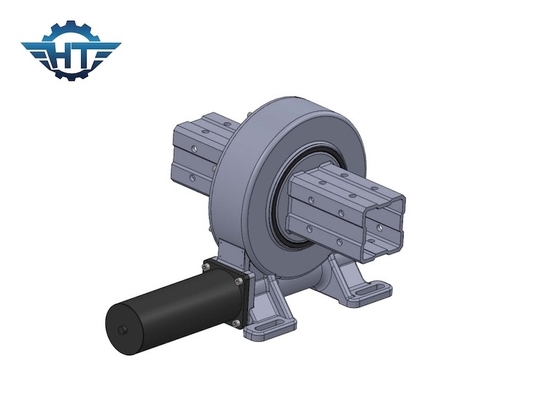

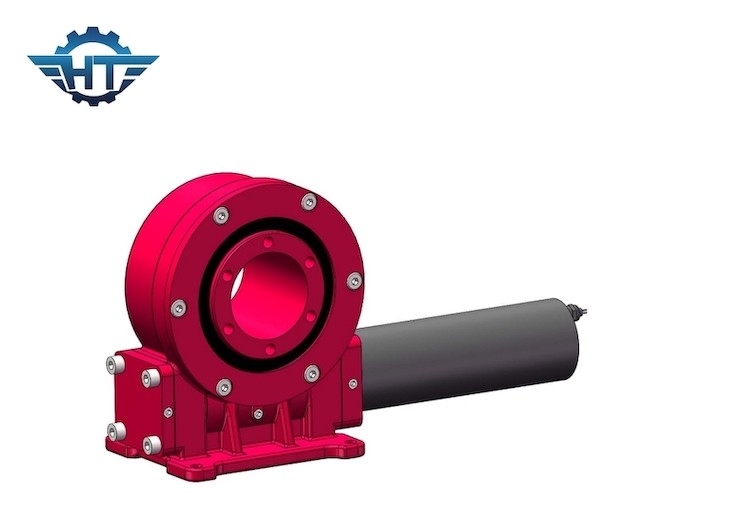

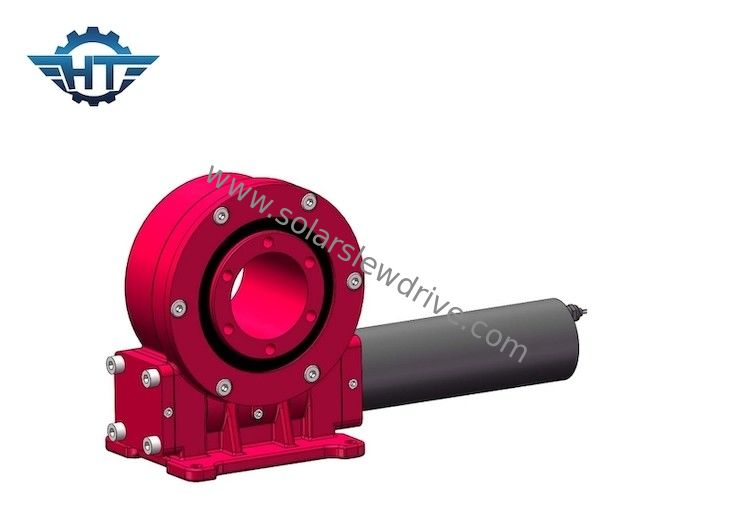

High Holding Torque Slew Drive Gearbox Electric Motor For Solar Renewable Energy

High Holding Torque Slew Drive Gearbox Electric Motor For Solar Renewable Energy

  • High Holding Torque Slew Drive Gearbox Electric Motor For Solar Renewable Energy
  • High Holding Torque Slew Drive Gearbox Electric Motor For Solar Renewable Energy
High Holding Torque Slew Drive Gearbox Electric Motor For Solar Renewable Energy
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE6"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~330/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Speed: 0.016 Rpm Application: Solar Renewable Energy
Driver: Electric Motor IP Grade: IP66
Max Torque: 7140 Nm Holding Torque: 40 KNm
Model: Vertical 6 Inches Ratio: 51:1
High Light:

High Holding Torque Slew Drive

,

Solar Renewable Energy Slew Drive

,

Electric Motor Solar Slew Drive

IP66 Protection High Holding Torque Slew Drive Gearbox For Solar Renewable Energy​



Slew Drive Gearbox Description



The enclosed housing slewing drive is mainly used in high torque output but limited installation space, and in the case of relatively high working conditions, such as dustproof, rainproof, anti-corrosion and other high requirements for the rotating structure, IP Rating is IP66.



Parameters of VE Series Slewing Drive



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Applications



The slewing drive gearbox is suitable for different latitude areas, the power generation efficiency can be effectively increased by 10%~40%, significantly improving the power generation efficiency of the photovoltaic system.



Concentrated solar energy is a solar power technology that uses optical elements such as lenses or reflective mirrors to condense a large area of ​​sunlight onto a very small area, and then further utilize the solar power generation technology to generate electricity. Concentrated solar technology can be divided into three categories, namely three manifestations:



The concentrated sunlight is directly converted into electrical energy through photovoltaic cells with high conversion efficiency (Concentrated Photovoltaics); CPV is the most typical representative of concentrated solar power technology.



Concentrated Solar Thermal: Use the high heat generated by the concentrated sunlight to heat the liquid working fluid, and then conduct thermal power generation (Concentrated Solar Thermal);

CPVT: The combination of the above two forms (Concentrated Photovoltaics and Thermal) CPV concentrating photovoltaic systems can be divided into two categories according to the different ways of concentrating sunlight, that is, the reflective type using mirror condensing light and the transmissive type using lens concentrating light
