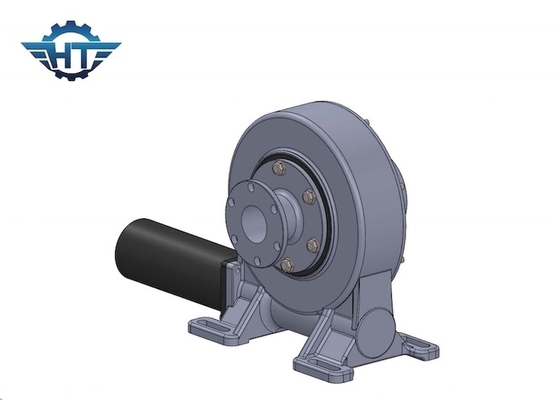

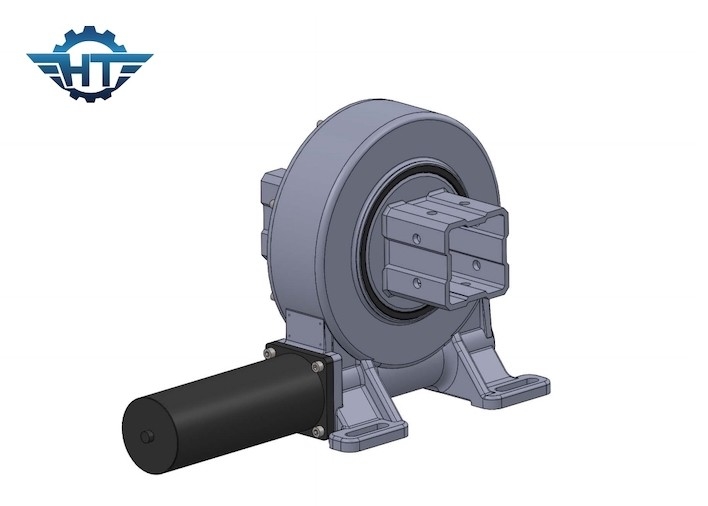

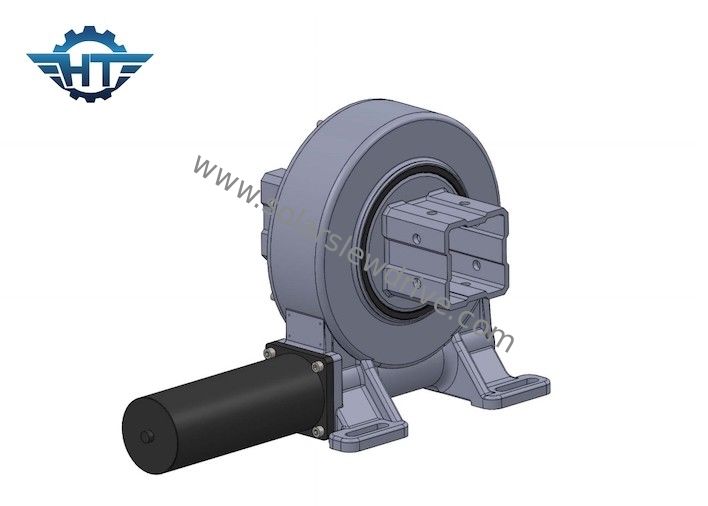

Vertical Tracker Slew Drive Gearbox With Hourglass Worm For Solar Renewable Energy

Vertical Tracker Slew Drive Gearbox With Hourglass Worm For Solar Renewable Energy

  • Vertical Tracker Slew Drive Gearbox With Hourglass Worm For Solar Renewable Energy
  • Vertical Tracker Slew Drive Gearbox With Hourglass Worm For Solar Renewable Energy
Vertical Tracker Slew Drive Gearbox With Hourglass Worm For Solar Renewable Energy
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: 9 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: 9 Inches
Holding Torque: 30800 Nm Gear Ratio: 61:1
Efficiency: 40% Accuracy: ≤0.1°
Motor: Electric Motor Color: As Requested
High Light:

Vertical Tracker Slew Drive Gearbox

,

Slew Drive Gearbox With Hourglass Worm

,

Slew Drive Gearbox For Renewable Energy

Vertical Solar Tracker Slew Drive Gearbox With Hourglass Worm For Solar Renewable Energy



Slew Drive Gearbox Description



Hangtuo have enrich and expert knowledge on designing, developing and manufacturing slewing drives. We have more than 10 years’ experience. Our team is specialized in researches and develops in that particular area. Our experience covers the fields of tracking technologies for photovoltaic systems, mechanical engineering, slewing drive technology.



Quick Reaction Times

Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.



Product Advantage

Slewing Drive (Enclosed Type, Vertical Type, Dual Axis Type, Precision Type) Hourglass worm slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.



Stable Quality

Set up Critical Quality Inspection Points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.



Testing

Advanced measurement device

Measurement should be calibrated, check and only qualified gauge can be used.



Technical Sheet



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Applications



The slewing drive is a new type of mechanical component, which is a large bearing that can bear comprehensive loads, and can bear large axial and radial loads and overturning moments at the same time.


Construction machinery is the original application of rotary drive devices, and it is also widely used, such as earth-moving machinery, excavators, disintegrators, stackers and reclaimers, graders, road rollers, dynamic compactors, rock drilling machinery, roadheaders, etc. Also mainly used in: truck cranes, railway cranes, port cranes, marine cranes, metallurgical cranes, container cranes, excavators, filling machines, and CT standing wave therapy instruments, navigation instruments, radar antenna bases, missile launchers, tanks , and revolving restaurants, etc. In recent years, slewing drives have been widely used in new energy industries, such as photovoltaics, solar thermal, wind energy and so on.
The slewing drive has played a crucial role in the development of industrial robots, so it is widely called "the joint of the machine", and industrial robots are widely used in manufacturing workshops.
