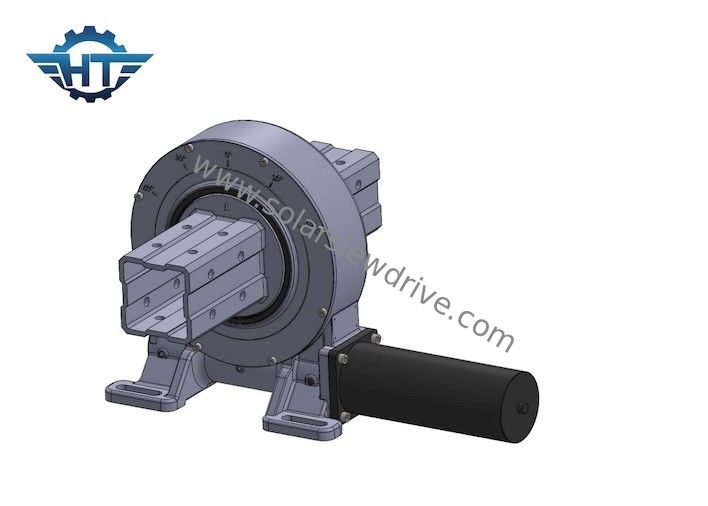

Enclosed Housing Self Locking Slewing Drive Gearbox For PV Solar Tracking System

Enclosed Housing Self Locking Slewing Drive Gearbox For PV Solar Tracking System

  • Enclosed Housing Self Locking Slewing Drive Gearbox For PV Solar Tracking System
  • Enclosed Housing Self Locking Slewing Drive Gearbox For PV Solar Tracking System
Enclosed Housing Self Locking Slewing Drive Gearbox For PV Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Structure: Self Locking Gear Gear Motor: Electric Motor
Gear Ratio: 61:1 Type: Vertical Mounted
Efficiency: 40% Precision: ≤ 0.1
Application: PV Solar Tracking System Color: As Requested
High Light:

Self Locking Slewing Drive Gearbox

,

Slew Drive Gearbox For PV Tracking System

,

Enclosed Housing Slew Drive Gearbox

Enclosed Housing Self Locking Slewing Drive Gearbox For PV Solar Tracking System



Slewing Drive Gearbox Description



The worm gear slew drive has the characteristics of reverse self-locking, which can realize reverse self-locking, that is, the gear can only be driven by the worm. This feature makes the slew drive be widely used in solar energy, antenna, lifting, high-altitude operations and other equipment. While improving the scientific and technological content of the main engine, it also greatly improves the operation stability and safety factor of the main engine.



According to the variable speed transmission form of slewing drive, it can be divided into gear slewing drive and worm gear slewing drive, inheriting the respective characteristics of gear drive and worm gear drive. In terms of bearing capacity, the performance of the worm gear type is better than that of the tooth type, and when the enveloping worm drive is used, its bearing capacity, anti-deformation ability and transmission rigidity are further improved, but the worm gear type slewing drive is less efficient in terms of efficiency. Inferior to the gear slewing drive, the gear slewing drive is further divided into spur gear type slewing drive, helical gear type slewing drive, and vortex type slewing drive.



Technical Sheet of VE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Advantages



1. Strong overturning moment

2. Adopt double enveloping worm

3. Drive larger load for using multi tooth contact

4. Better static self-locking function
