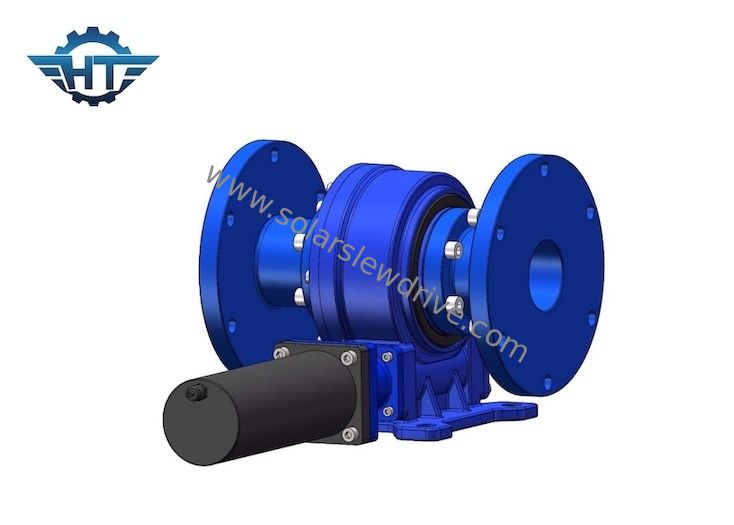

High Performance IP66 Enclosed House Small Slew Drive Gearbox For PV Solar Mounting System

High Performance IP66 Enclosed House Small Slew Drive Gearbox For PV Solar Mounting System

  • High Performance IP66 Enclosed House Small Slew Drive Gearbox For PV Solar Mounting System
  • High Performance IP66 Enclosed House Small Slew Drive Gearbox For PV Solar Mounting System
High Performance IP66 Enclosed House Small Slew Drive Gearbox For PV Solar Mounting System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Size: 7 Inches Gear Ratio: 57:1
Rated Output Torque: 6120 Nm Holding Torque: 39 KN.m
Tilting Torque: 10 KN.m Efficiency: 40%
Max Torque: 10200 N.m Color: As Requested
High Light:

Slew Gearbox For PV Solar Mounting

,

high performance Slew Drive Gearbox

,

Enclosed House Small Slew Drive Gearbox

IP66 Enclosed House Small Slew Drive Gearbox For PV Solar Mounting System​



Small Slew Drive Gearbox



The slewing drive is a new type of slewing product. It usually consists of a slewing bearing, a worm, a motor, a casing, etc. It has the advantages of large size, stable transmission, long service life, easy installation, saves a lot of installation space, easy to maintain, and can greatly save costs.



Slewing drives is of high performance. It is powered with hourglass worm technology to give the gearbox enormous strength and power, maximize survivability load-holding as well as increased efficiency and accuracy.



High Performance IP66 Enclosed House Small Slew Drive Gearbox For PV Solar Mounting System 0



Technical Table of VE Slewing Drive



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Applications



Photovoltaic power generation field: Photovoltaic power generation is an important application field of slewing drive. Solar photovoltaic modules with slewing drive as rotating parts can adjust the rotation angle and elevation angle of the main engine according to the different positions of the sun in the day. So that the sunlight is always irradiated vertically, which is the solar panel.


Wind power generation field: Same as photovoltaic power generation, the rotary drive can be applied to the yaw part of the wind turbine to realize the horizontal 360 rotation of the mechanism, so as to adjust the receiving angle.
