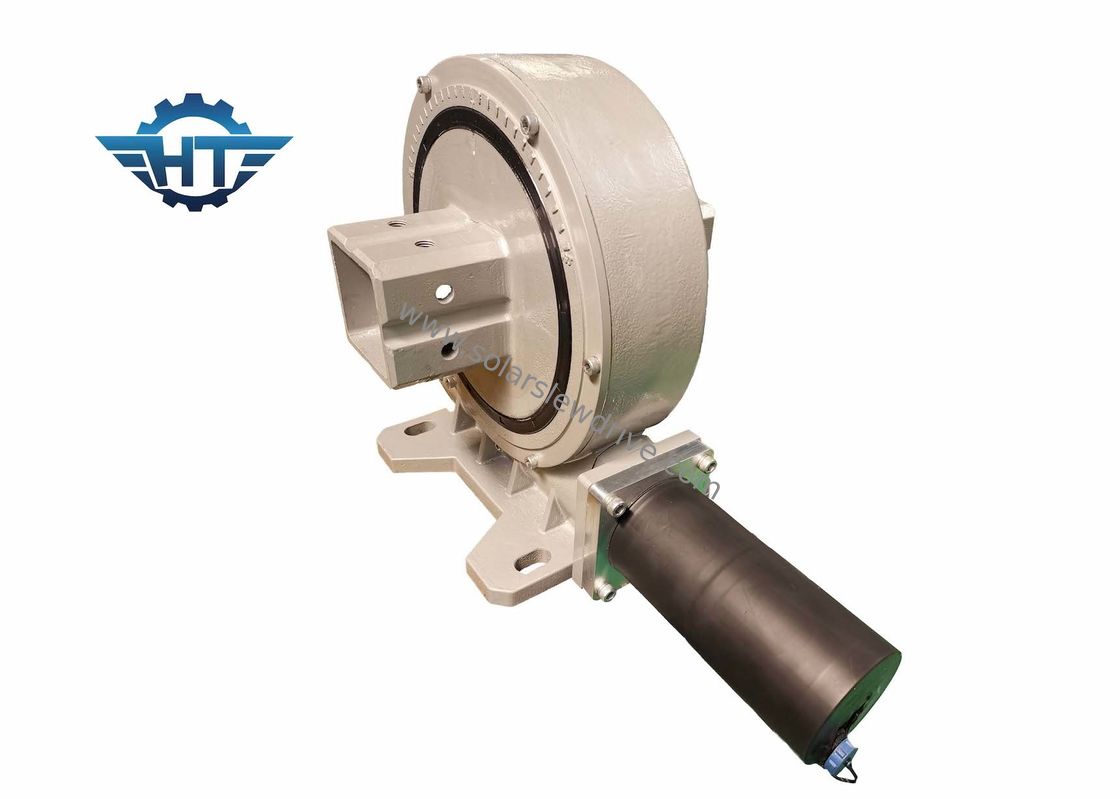

6 Inches Worm Gear Solar Slew Drive 50Mn For PV Solar Tracking System

6 Inches Worm Gear Solar Slew Drive 50Mn For PV Solar Tracking System

  • 6 Inches Worm Gear Solar Slew Drive 50Mn For PV Solar Tracking System
  • 6 Inches Worm Gear Solar Slew Drive 50Mn For PV Solar Tracking System
6 Inches Worm Gear Solar Slew Drive 50Mn For PV Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE6"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 200~300/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE6"
Gear Ratio: 57:1 Rated Output Torque: 7320 Nm
Holding Torque: 3.9 KNm Tilting Torque: 8 KNm
Efficiency: 40% Standard Color: As Requested
High Light:

50Mn Worm Gear Solar Slew Drive

,

6 Inches Solar Slew Drive

,

Solar Slew Drive For PV Tracking System

6 Inches Worm Gear Solar Slew Drive For PV Solar Tracking System





Worm Gear Solar Slew Drive Description



Solar tracking slewing drive is a gear box that can safely withstand radial and axial loads and transmit torque by manufacturing gears, bearings, seals, housings, motors and other auxiliary components and assembling them into a finished product. The slewing drive can be horizontal single axis, vertical single axis, or dual axis.



Parameters of Vertical Slewing Drives



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg

*For more accurate and detailed parameters, pls contact our sales.



Features



Slewing drives for solar tracking systems, available in right-angle and in-line configurations, plus the availability of multiple accuracy grades, you're sure to find the right product for your application. The solar tracking system keeps the photovoltaic panels facing the sun throughout the day, thereby significantly increasing the total power generation.



6 Inches Worm Gear Solar Slew Drive 50Mn For PV Solar Tracking System 0

Services


1. OEM service

2. We provide standard products and non-standard products;

3. We provide customized samples, customized drawings, door-to-door mapping and other services;

4. We provide a full range of services, including design, processing, packaging, transportation, etc.
