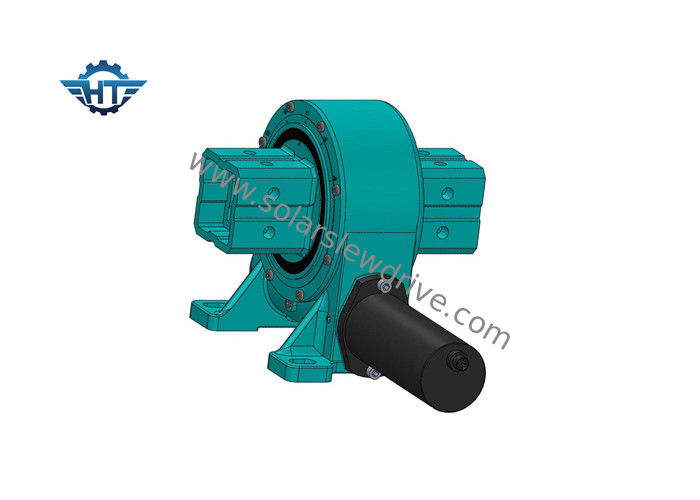

9 Inch Vertical Mounted Worm Gear Single Axis Slew Drive IP66 For Solar Panel System

9 Inch Vertical Mounted Worm Gear Single Axis Slew Drive IP66 For Solar Panel System

  • 9 Inch Vertical Mounted Worm Gear Single Axis Slew Drive IP66 For Solar Panel System
  • 9 Inch Vertical Mounted Worm Gear Single Axis Slew Drive IP66 For Solar Panel System
9 Inch Vertical Mounted Worm Gear Single Axis Slew Drive IP66 For Solar Panel System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 9 Inch Gear Ratio: 61:1
Efficiency: 40% Precise: ≤ 0.1
Driver: Electric Motor Type: Vertical Mounted
Application: Exposed To Weather Color: Requested
High Light:

Worm Gear Single axis Slew Drive

,

vertical mounted Worm Gear Slew Drive

,

Worm Gear Slew Drive For Solar Panel

9 Inch Worm Gear Single Axis Slew Drive, IP66 For Solar Panel System Exposed To Weather



Worm Gear Slew Drive Description



Worm gear slewing drive is a higher wear-resistance of worm gear drive, which can bear strong output torque and tilting moment torque with the well performance of stability and reliability. The worm gear slewing drive is also available for higher tracking precise field.



Our slewing drive has features of reverse self-locking because of worm gear self-locking characteristics. This feature greatly enhances the stability of the host operating and safety factor. Compared to the traditional swing products, slewing drive gearbox is easy to install, easy to maintain, and saves considerable installation space.



Parameters of VE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Our Services



1. Any inquiries will be replied within 24 hours.

2. Professional manufacturer.

3. OEM/ODM available:

1). Customized design

2). Customized dimension

3). Customized package

4. High quality, reasonable & competitive price, fast lead time

5. After-Sale Service:

1). All products will have been strictly Quality checked in warehouse before packing

2). All products will be well packed before shipping

3). All our products have 10 years warranty and 30 years field life

6. Faster Delivery:

Sample order in stock, and 7-45 days for bulk production

7. Shipping:

By ship, By air or other express etc.



Advantages



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function
