Providing Innovative and Cost-effective Slewing Drives
 |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Changzhou, China | Model: | VE9 |
|---|---|---|---|
| Gear Ratio: | 61:1 | Application: | Solar Tracking System |
| Gear: | Helical Worm Gear | Certificate: | ISO9001, CE |
| Installation: | Vertical Installed | Maintenance: | Easy, Internal 5 Years |
| Color: | As Requested | Backlash: | ＜0.1° |
| High Light: | Compact Worm Gear Slew Drive,CPV worm drive slew ring,CSP worm drive slew ring |
||

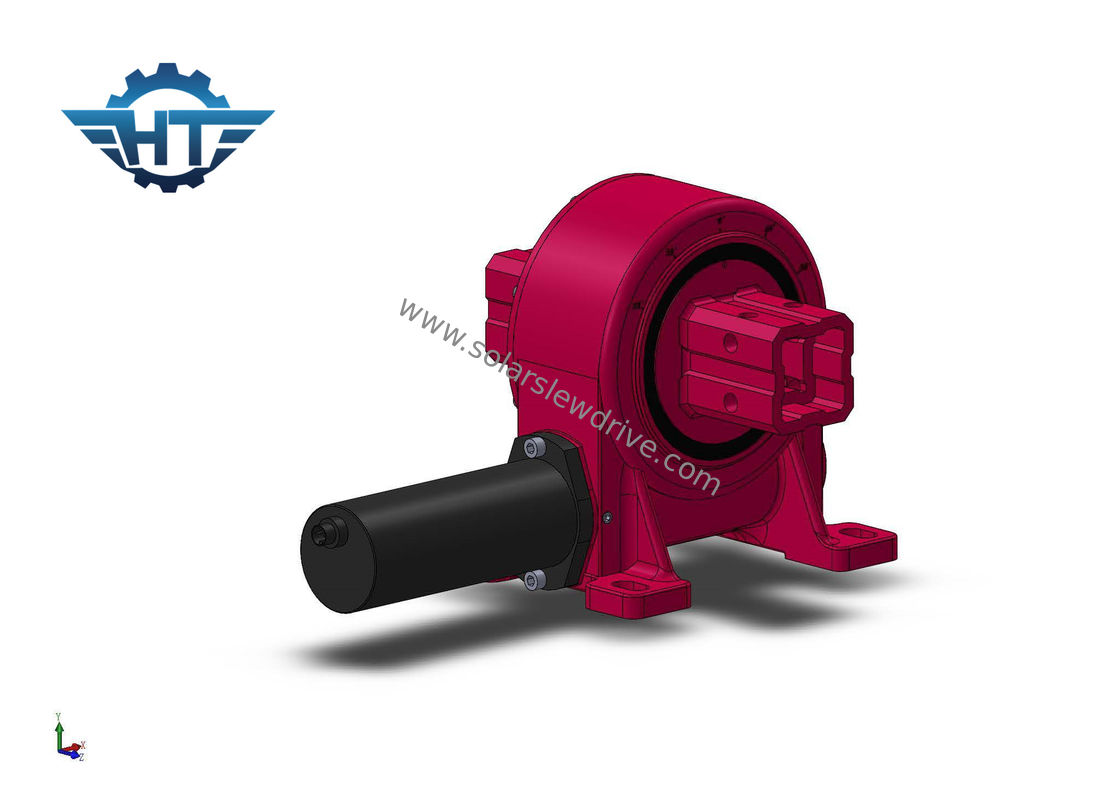

VE9 Compact Worm Gearbox Slewing Drive For CPV, CSP And Solar Trackers
Worm Gear Slewing Drive Product Description
Function: Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.
Gear ratio:The rotation of the horizontal worm turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven unit and also multiplies its torque; increasing it proportionally as the speed decreases.The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.
Technical Parameters of VE9 Slewing Drive
| Model | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed Housing,IP66 |
| Material | 42CrMo,50Mn | Output Torque | 7320 N.m |
| Tilting Moment Torque | 16.3 K N.m | Holding Torque | 55 K N.m |
| Static Axial Rating | 60 KN | Static Radial Rating | 130 KN |
| Dynamic Axial Rating | 30 KN | Dynamic Radial Rating | 65 KN |
| Gear Ratio | 61:1 | Efficiency | 40% |
Applications
The slewing drive applications include solar trackers, CSP, CPV, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts etc.
