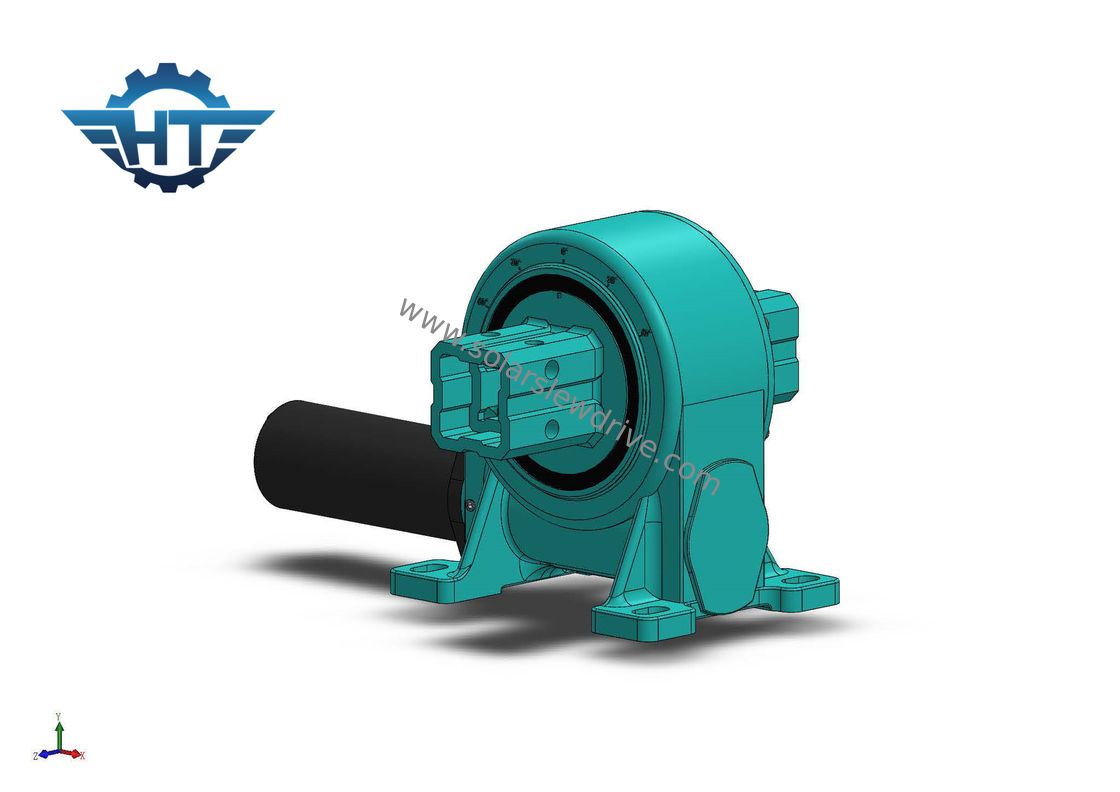

Enveloping Worm Gear Single Axis PV Solar Slew Drive 42CrMo Material

Enveloping Worm Gear Single Axis PV Solar Slew Drive 42CrMo Material

  • Enveloping Worm Gear Single Axis  PV Solar Slew Drive 42CrMo Material
  • Enveloping Worm Gear Single Axis  PV Solar Slew Drive 42CrMo Material
Enveloping Worm Gear Single Axis  PV Solar Slew Drive 42CrMo Material
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Slewing Drive Type: Anti Backlash Worm Gear Worm Material: 42CrMo/50Mn
Application: PV Solar System Field Life: 30 Years
Color: Customer Required Size: 3 Inch - 25 Inch
Motor: 24V/12V/48V DC Feature: Low Maintenance
High Light:

Single Axis PV Solar Slew Drive

,

Enveloping Worm Gear Solar Slew Drive

,

42CrMo Worm Gear Solar Slew Drive

Enveloping Worm Gear Single Axis Solar Tracker Slew Drive For PV Solar



Electric Slew Drive Description



The Electric Slew Drive is mainly designed and used in photovoltaic power station trackin. such as horizontal single-axis tracking system, big linkage tracking system, oblique single-axis linkage tracking system, oblique single-axis tracking system, and dual-axis tracking system.



1. Flat single axis linkage

Suitable for latitudes below 30 degrees and ground slopes less than 12 degrees.

Enveloping Worm Gear Single Axis  PV Solar Slew Drive 42CrMo Material 0



2. Oblique single axis linkage

Suitable for medium to high latitudes, the ground needs to be approximately flat.

Enveloping Worm Gear Single Axis  PV Solar Slew Drive 42CrMo Material 1



3. Oblique single-axis unit

Suitable for medium to high latitudes.

Enveloping Worm Gear Single Axis  PV Solar Slew Drive 42CrMo Material 2



4. Dual axis

Enveloping Worm Gear Single Axis  PV Solar Slew Drive 42CrMo Material 3



Features



1. Rotate from ±60°

2. Connect a driving motor on the left or right side

3. Grease had been filled before factory

4. Simple installation

5. Rational space utilization

6. The gear is self-locking

7. Easy and fluent method of starting and stopping

8. High backholding torque, suitable for vertical installation

9. Low maintenance

10. 30 year field life



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
