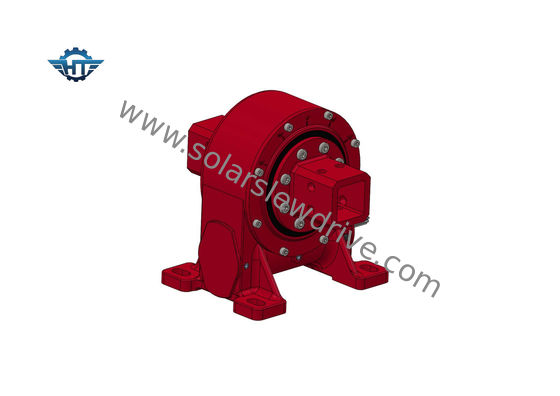

Compact Worm Gearbox Slewing Ring Drive For Solar Tracker

Compact Worm Gearbox Slewing Ring Drive For Solar Tracker

  • Compact Worm Gearbox Slewing Ring Drive For Solar Tracker
  • Compact Worm Gearbox Slewing Ring Drive For Solar Tracker
Compact Worm Gearbox Slewing Ring Drive For Solar Tracker
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 360/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Ratio: 61 To 1 Gearbox Material: 50Mn, 42CrMo
Feature: Locking Gear Mechanism Certificate: ISO9001, CE
Driver: 12/24VDC Maintenance: Every 5 Years
Color: As Requested Origin: Changzhou, China
High Light:

Locking Gear Mechanism slewing ring drive

,

42CrMo slewing ring drive

,

24VDC electric slew drive

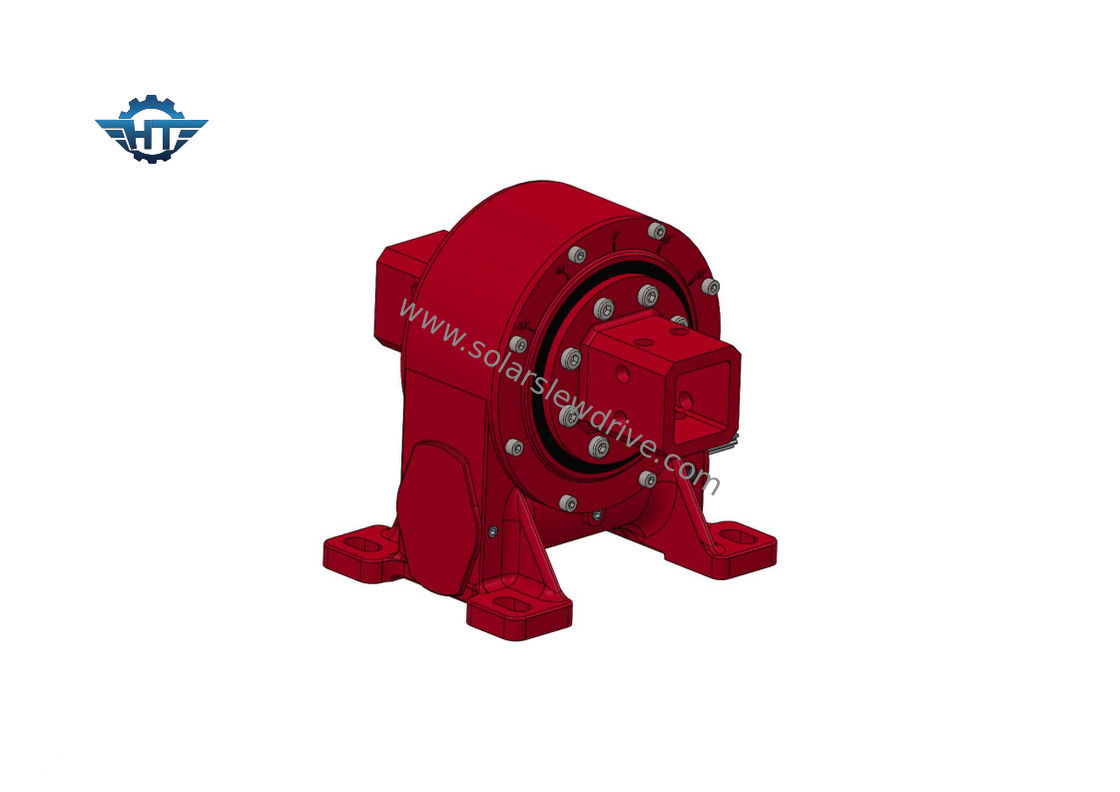

VE9 Compact Worm Gearbox Slewing Drive For Axis Solar Tracker



Compact Worm Gearbox Description



Dependable delivery – most orders ship in 15 days or less, for busy seasons, in 30 days

Technical support – engineers are standing by to help

High-quality slewing drives at a fair price – we have our own factory with products meet or exceed the quality of all major brands and we will use economic shipping methods based on different orders to keep you within budget

Operations & Maintenance-operations and maintenance is easy and lower your fee



Compact Worm Gearbox Slewing Ring Drive For Solar Tracker 0



VE9 Worm Gear Sets Data Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Installation



1. Preparation

1.1 Check the slew drive for physical damage.

1.2 Clean supporting surfaces



2. Mounting Bolts

As the gearbox manufacturer, we do not supply, warrant or recommend the mounting fasteners used. Please take great care in specifying this item which will attach our product to yours.

Prescribed sizes, number and quality grades shall be used.

Grip ratio (grip length to diameter of bolt) shall be observed, from minimum ≥1.5 to maximum ≤2.

Bolts with a fully threaded shaft should be not permissible.

Slew drive function, lifespan, and durability of the bolt connection are affected in case of non-compliance.

Use flat washers of appropriate size and strength choice of tightening torques so that the permissible interfacial pressure is not exceeded.

Mounting bolts are in normal cases adequately secured by correct preloading.

Notice: Use of split rings, split washers, etc. not permissible.

Tightening Torque and initial preloads for mounting bolts.



Tightening Torque​

Mounting Bolt Dimension

Class

M6

(1/4-20UNC)

M8

(5/16-18UNC)

M10

(3/8-16UNC)

M12

(7/16-14UNC)

M16

(5/8-11UNC)

M20

(3/4-10UNC)

Class 8.8 10.2 N.M 24.7 N.M 49 N.M 85.5 N.M 212.2 N.M 414 N.M
Class 10.9 14.3 N.M 34.8 N.M 68.9 N.M 120.2 N.M 298.4 N.M 582.1 N.M
Class 12.9 17.2 N.M 41.7 N.M 82.7 N.M 144.2 N.M 358.1 N.M

689.5 N.M
