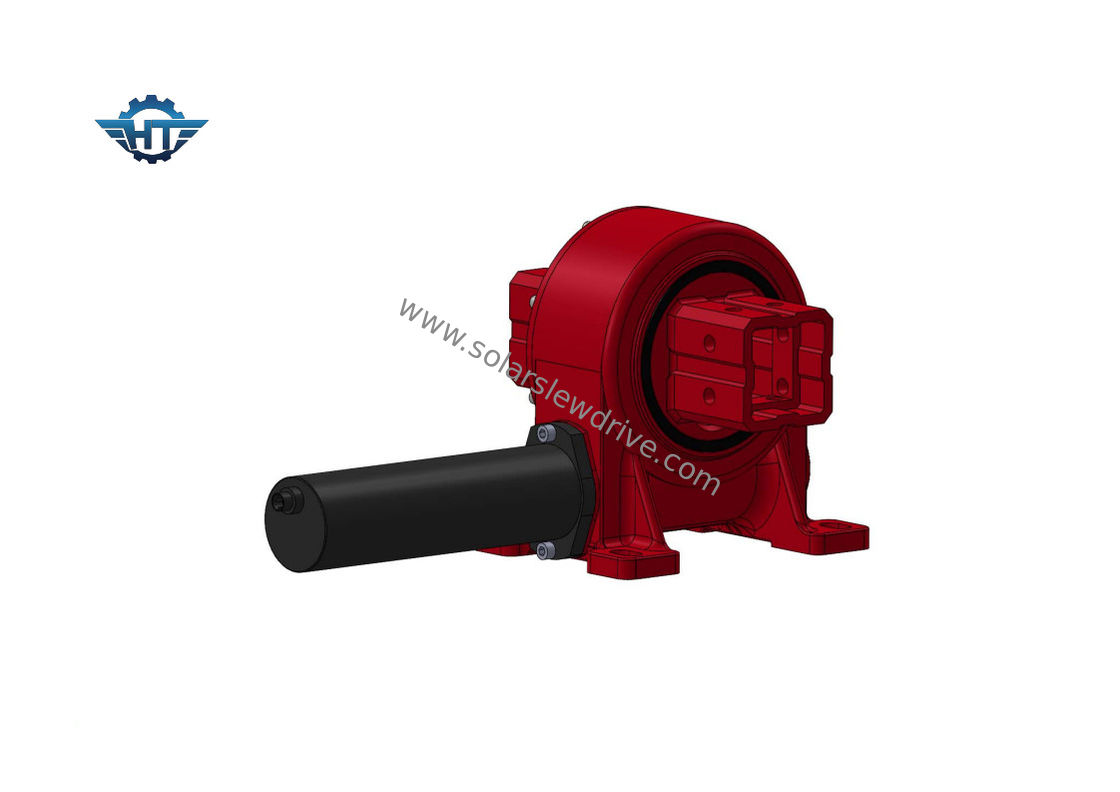

VE5 Envelope Worm Electric Slew Drive Gearbox With Motor

VE5 Envelope Worm Electric Slew Drive Gearbox With Motor

  • VE5 Envelope Worm Electric Slew Drive Gearbox With Motor
  • VE5 Envelope Worm Electric Slew Drive Gearbox With Motor
VE5 Envelope Worm Electric Slew Drive Gearbox With Motor
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Worm Wheel Mechanism Material: 42CRMN Or 50Mn
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Feature: Long Life
Motor: 24V
High Light:

Envelope Worm Slew Drive Gearbox

,

50Mn Slew Drive Gearbox

,

envelope Worm electric slew drive

5. VE5 Envelope Worm Slew Drive Gearbox With Motor For Solar Tracking System



Self Locking Worm Gear​ Description



Fresnel concentrated solar power station is a kind of CSP solar tracking system. The working principle is similar to trough type photothermal power generation, except that the Fresnel structure condenser is used instead of the mirror. This makes it relatively inexpensive, but the efficiency is correspondingly reduced.



Because such a system has only a few times of concentrating, the quality of the heated water vapor is not high, so that the annual power generation efficiency of the whole system can only reach about 10%; but due to the simple structure of the system and the direct use of heat-transfering medium to generate steam, its construction and maintenance costs are also relatively low.

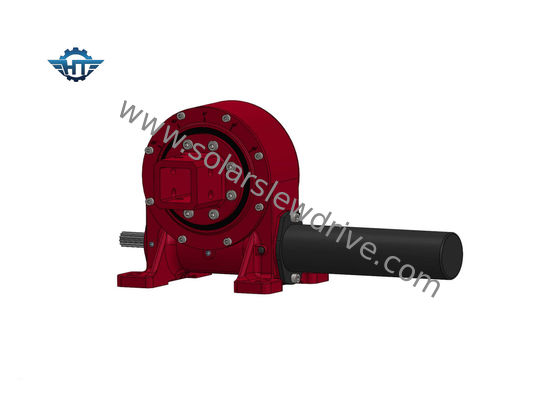

VE5 Envelope Worm Electric Slew Drive Gearbox With Motor 0

Features



1. Rotate 360°

2. Connect a driving motor on the left or right side

3. Grease had been filled before factory

4. Simple installation and rational space utilization

5. Self locking worm gear

6. Easy and fluent method of starting and stopping

7. High backholding torque, suitable for vertical installation

8. Low maintenance



VE Series Slew Drive Performance Chart



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
