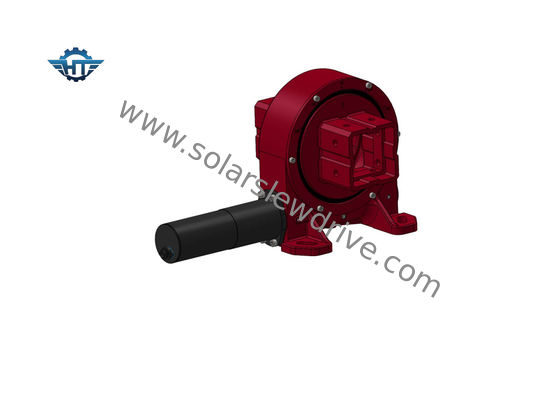

Worm Gear Vertical Slewing Drive With Stepper Motor For CPV And CSP

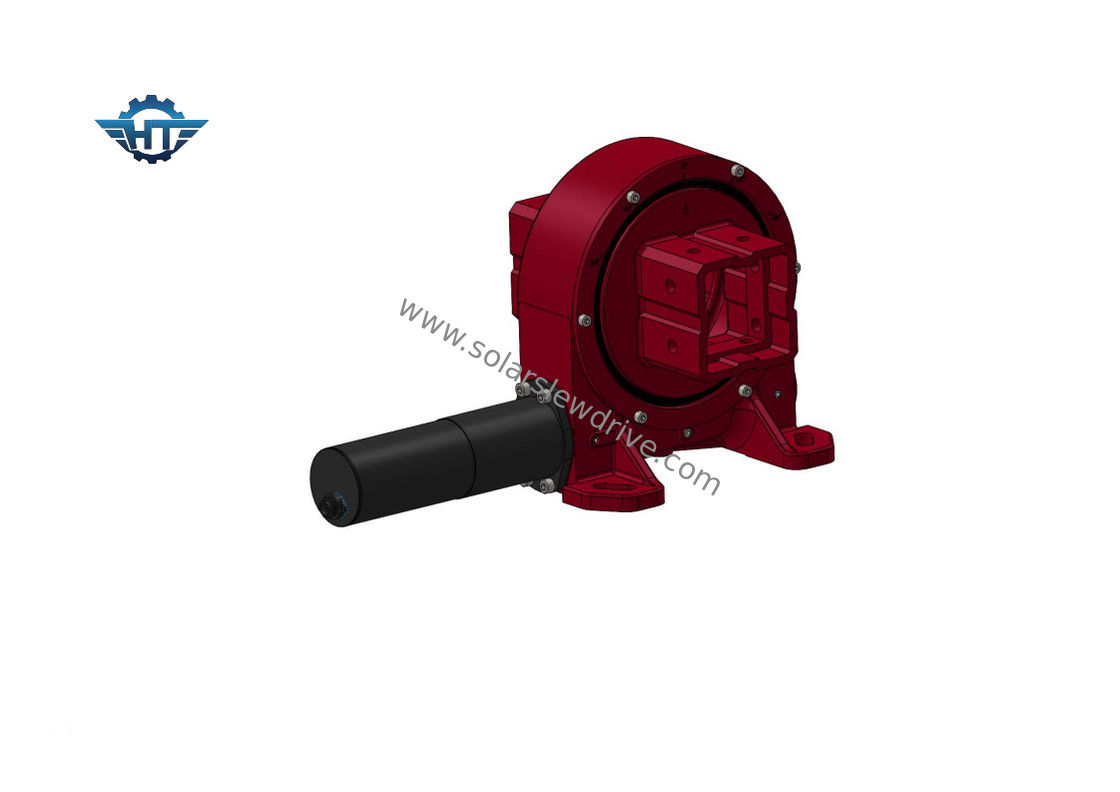

Worm Gear Vertical Slewing Drive With Stepper Motor For CPV And CSP

  • Worm Gear Vertical Slewing Drive With Stepper Motor For CPV And CSP
  • Worm Gear Vertical Slewing Drive With Stepper Motor For CPV And CSP
Worm Gear Vertical Slewing Drive With Stepper Motor For CPV And CSP
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Worm Gear Reduction: VE9 Gear Ratio: 61:1
Application: Solar Tracking System Place Of Origin: Changzhou, China
Driver: DC Motor Certificate: ISO9001, CE
Structure: Worm And Gear Maintenance: Easy
Color: Silver Grey Tooth Type: Muti-tooth Contact
High Light:

CPV Vertical Slewing Drive

,

CSP Vertical Slewing Drive

,

CPV worm gear slew drive

Vertical Worm Gear Slewing Drive With Stepper Motor And Driver For CPV And CSP



Worm Gear Reduction Gearbox​ Description



Function

Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.



Gear ratio

The rotation of the horizontal worm turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases.The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.



Worm Gear Vertical Slewing Drive With Stepper Motor For CPV And CSP 0



VE9 Worm Gearbox Slewing Drive Specification



Model VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27.2 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%



VE9 Speed Reducer Applications



solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
