VE3 Solar Tracking Slewing Device 24VDC Motor Fire Proof For Open Field

VE3 Solar Tracking Slewing Device 24VDC Motor Fire Proof For Open Field

  • VE3 Solar Tracking Slewing Device  24VDC Motor Fire Proof For Open Field
  • VE3 Solar Tracking Slewing Device  24VDC Motor Fire Proof For Open Field
VE3 Solar Tracking Slewing Device  24VDC Motor Fire Proof For Open Field
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 120~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE3"
Gear Ratio: 31:1 Efficiency: 40%
Color: As Requested Slewing Drive Application: Solar Panel Tracker
Place Of Origin: Changzhou, China Slewing Motor: 24VDC Motor
Warranty: 5~10 Years Field Life: 30 Years
Installation Site: Open Field, Flat Roof Feature: Secure
High Light:

VE3 solar tracking Slewing Device


42CrMo solar tracking Slewing Device


24VDC Motor solar Slewing Device

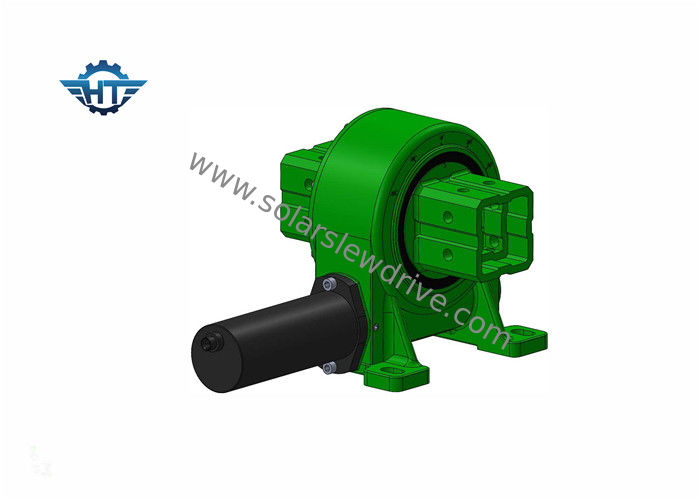

VE3 Single Axis Small Slewing Device For Single Axis Solar Tracking System​


The slewing drive is a new type of transmission product, it can rotate a heavy load with a very slow speed. It is usually composed of worm, gear, housing, motor and other components. Since the core components are the hourgalss worm and gear, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.


Performance Parameters of VE Series


Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244


Recommended slewing drive


Enclosed housing slewing drive SE1 SE3 SE5 SE7 SE9 SE12 SE14 SE21
Precise enclosed housing slewing drive ZE3 ZE5 ZE7 ZE9
Worm gear slewing drive WE1 WE3 WE5 WE7 WE9
Dual axis slewing drives SDE3 ZDE3 SDE5 ZDE5 SDE7 ZDE7
Vertical enclosed slewing Drive VE3 VE5 VE6 VE7 VE9 VE12


DC Motor


1. Adopt Dual supporting structure for output shaft so that the max torque of gearbox is increased a lot.

2. Sun wheel and planetary wheel are connected by spline which increase the max torque of gearbox and lengthen the life.

3. We use helical gear at input stage which make the noise low anf run smoothly in high speed. The inner gear ring is separated so that we can make more ratio and the design is flexible. Gearbox and motor are located by a seam fix by screw in axial which increase the matching precision and reduce noise.

4. We use rolling pin holder inside planetary wheel.we use rolling pin grinding instead of sliding grinding so the life of gearbox is much longer.

5. Double supporting structure; Internal grinding on inner bore of planetary gears making the inner bore roundness less than 0.003mm;running by rolling instead of sliding; HRC60 gear surface precision scraping;The adopting of all these technoligies ensure the super quiet and steady operating and a long life time over 10000 hours.
